Torque Converter Clutch (TCC) Pulse Width Modulated (PWM) Solenoid Valve (M30)

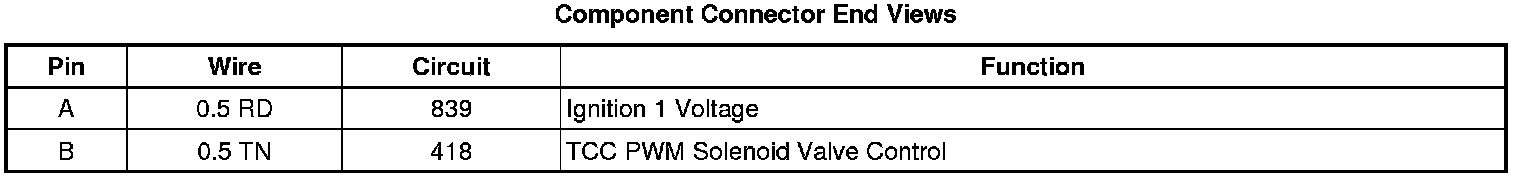

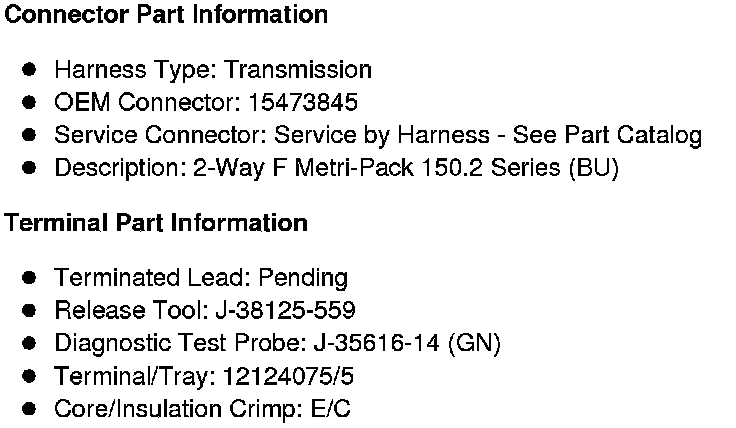

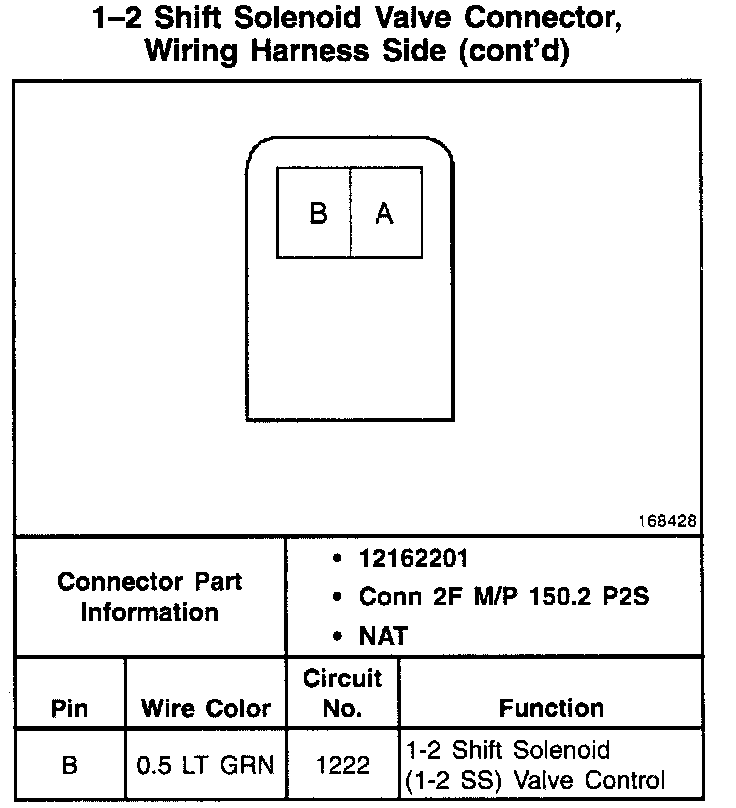

Component Connector End Views

Torque Converter Clutch (TCC) Pulse Width Modulated (PWM) Solenoid Valve (M30)
