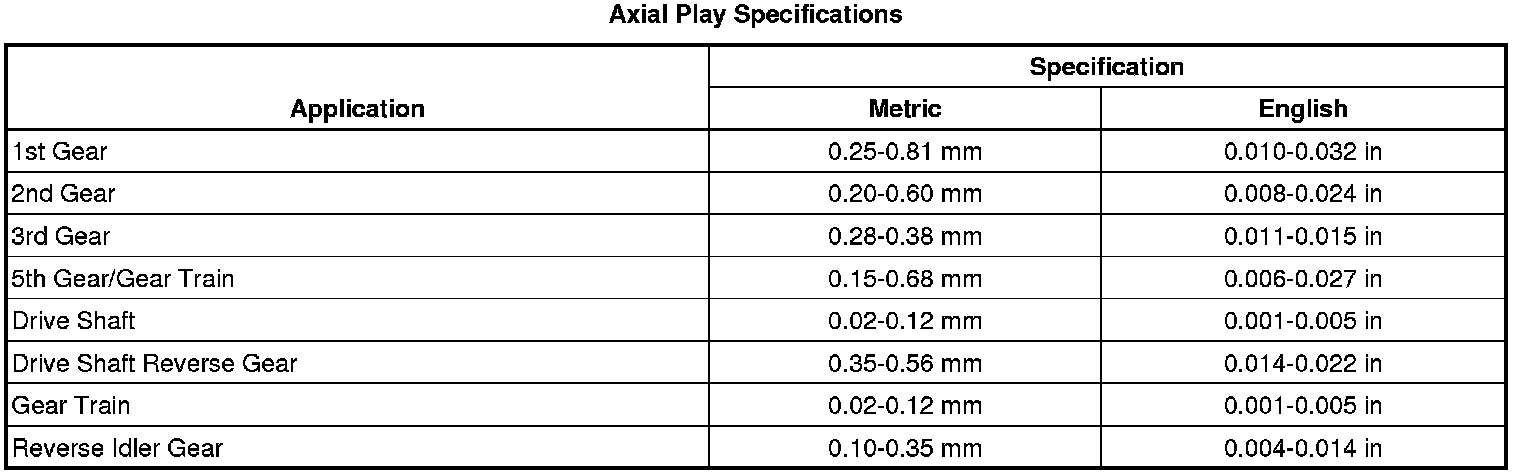

Axial Play Specifications




Axial Play Specifications

The axial play should be maintained upon assembling the main shaft unit, the 5th gear assembly, the gear train, and the reverse gear.
