Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (Non-HP2)

Special Tools

J-39400-A - Halogen Leak Detector

Removal Procedure




1. Disconnect the electrical connector from the A/C refrigerant pressure sensor.

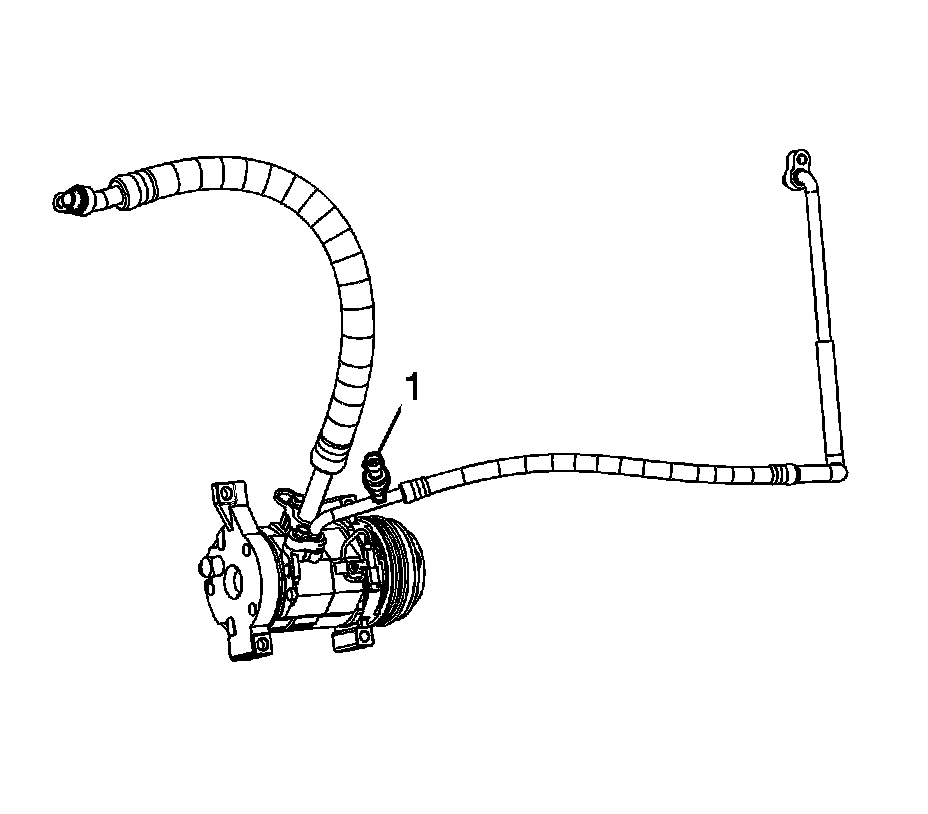

2. Remove the A/C refrigerant pressure sensor (1) from the condenser tube.

Installation Procedure





Caution: Refer to Fastener Caution Fastener Caution.

1. Install the A/C refrigerant pressure sensor (1).

Tighten the switch to 6 Nm (53 lb in).

2. Connect the electrical connector to the A/C refrigerant pressure sensor.

3. Leak test the fittings of the components using the J-39400-A - halogen leak detector.

4. Lower the vehicle.
