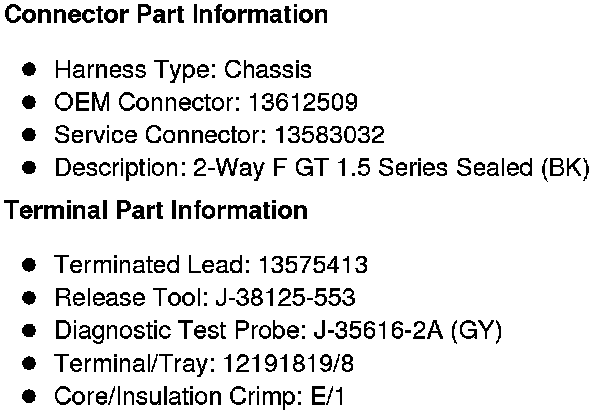

Wheel Speed Sensor (WSS) - Right Rear (JL4 except 10 Series)
Wheel Speed Sensor (WSS) - Right Rear (JL4 except 10 Series)

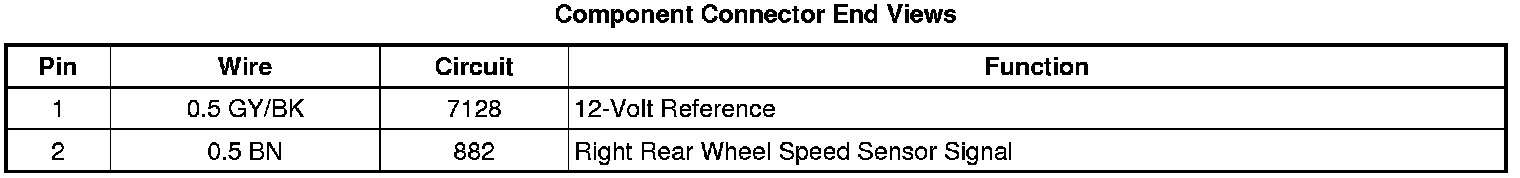

Component Connector End Views
Wheel Speed Sensor
(WSS) - Right Rear (JL4 except 10 Series)
