Component Locations

Wheels/Vehicle Underbody Component Views

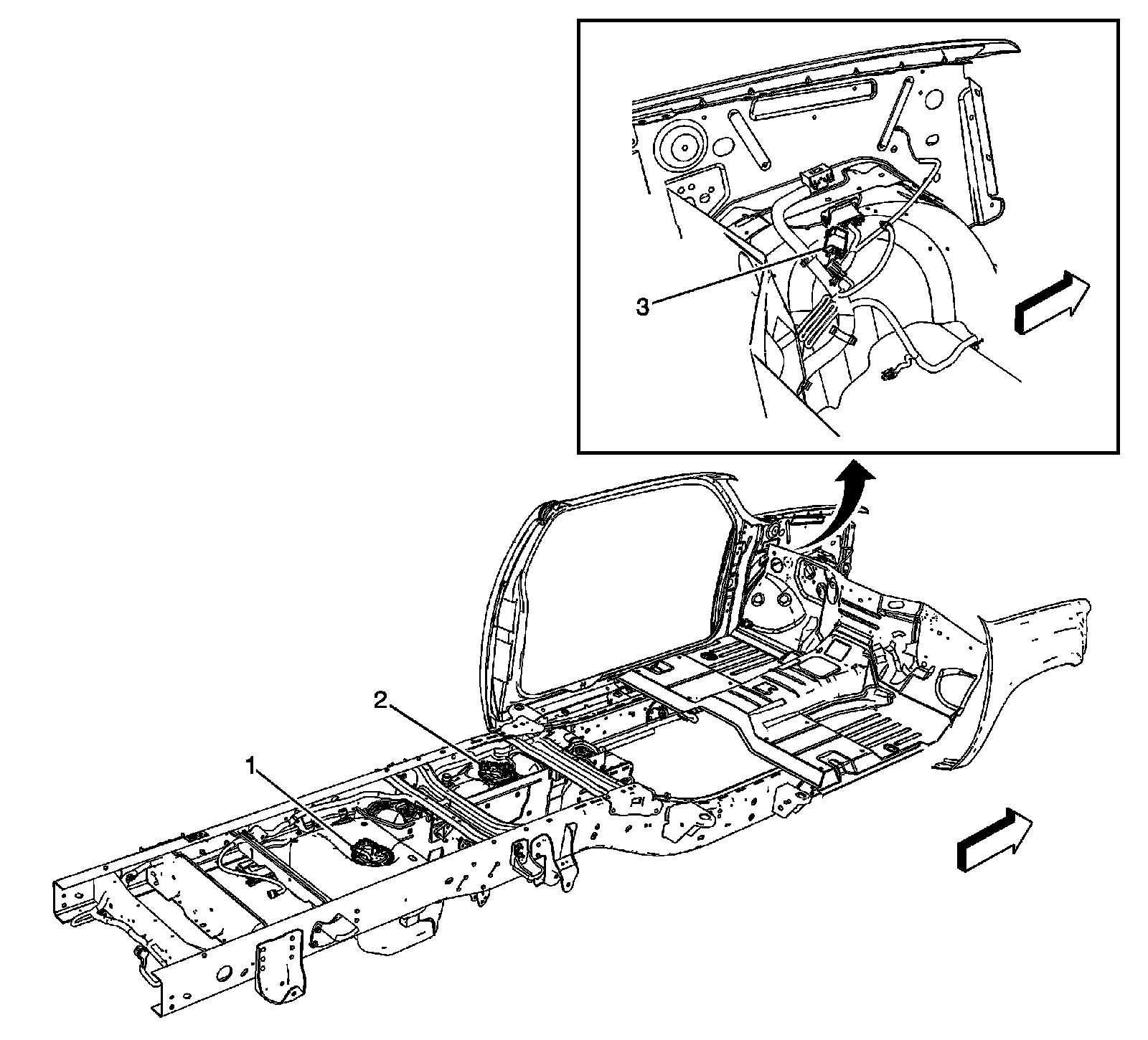

Left Side Frame and Underbody Components (Gas with L96)





1 - Fuel Pump and Sender Assembly - Rear

2 - Fuel Pump and Sender Assembly - Front

3 - Fuel Pump Relay - Secondary







The underhood fuse block is located in the engine compartment, on the driver side of the vehicle. Lift the cover to access the fuse block.
