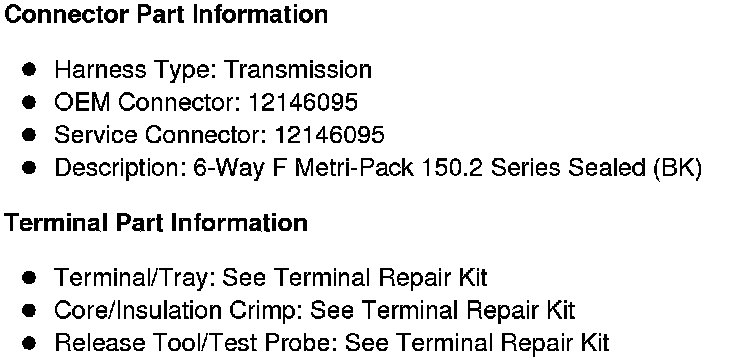

Automatic Transmission Internal Mode Switch (IMS) (MW7)
Automatic Transmission Internal Mode Switch (IMS) (MW7)

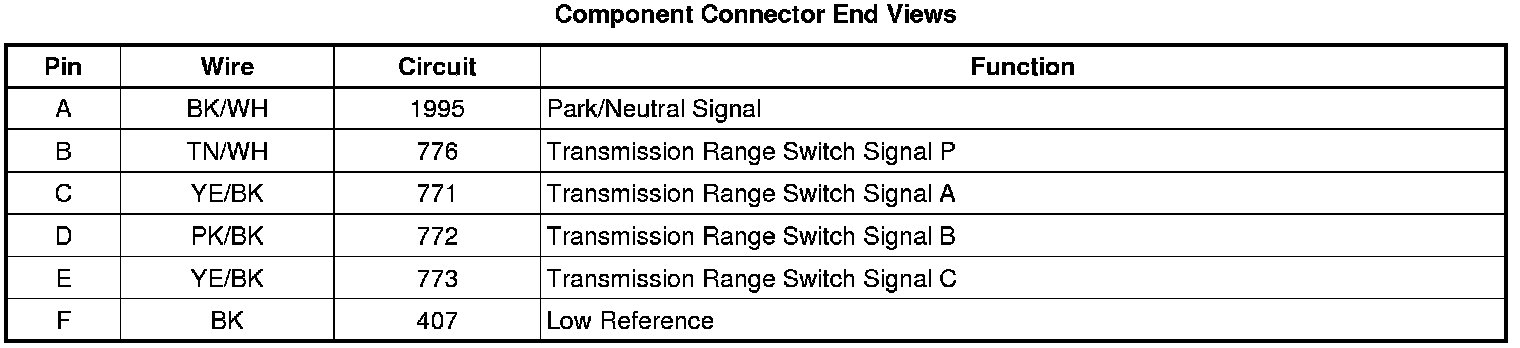

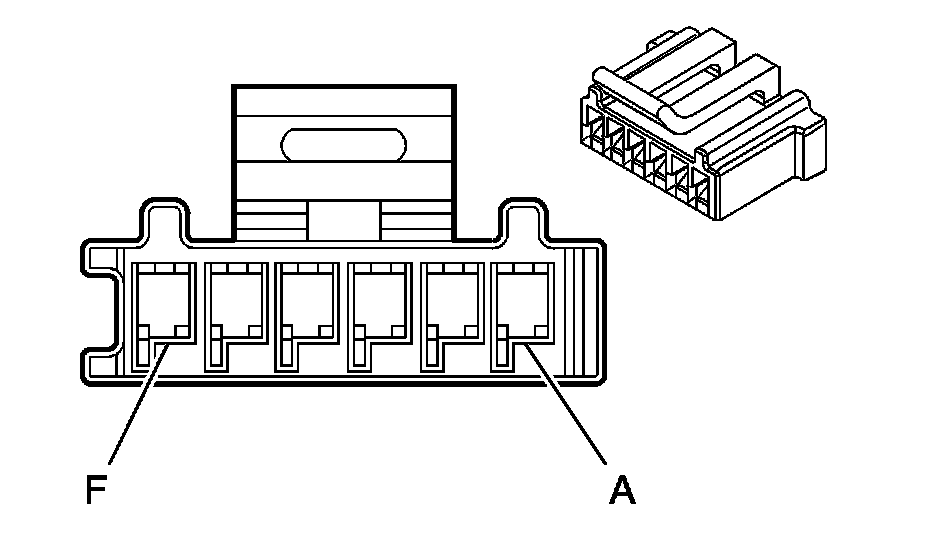

Component Connector End Views
Automatic Transmission Internal Mode Switch (IMS) (MW7)
