Chevy Truck
>>
2013
>>
Silverado 3500 4WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Dome Lamp
>>
Diagrams
>>
Dome/Reading Lamps - Rear (Crew Cab or Extended Cab)
Dome/Reading Lamps - Rear (Crew Cab or Extended Cab)

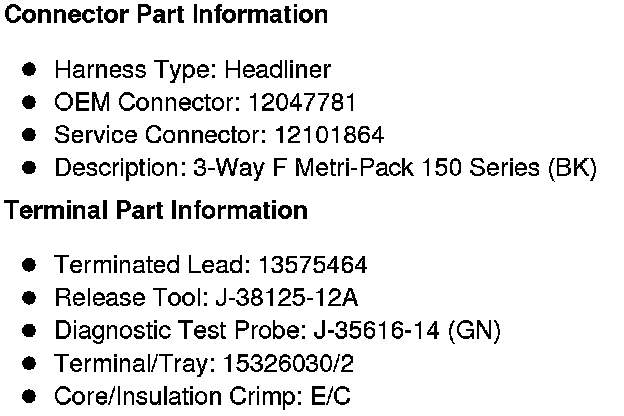

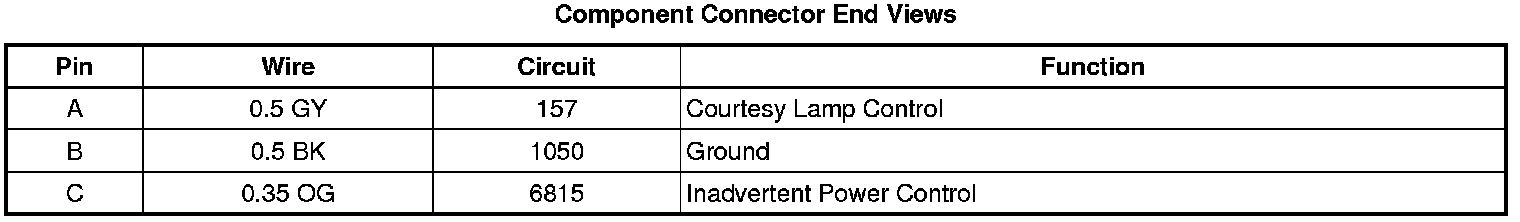

Component Connector End Views
Dome/Reading Lamps - Rear (Crew Cab or Extended Cab)
