Console Harness Routing (Y91/D07/UQA)

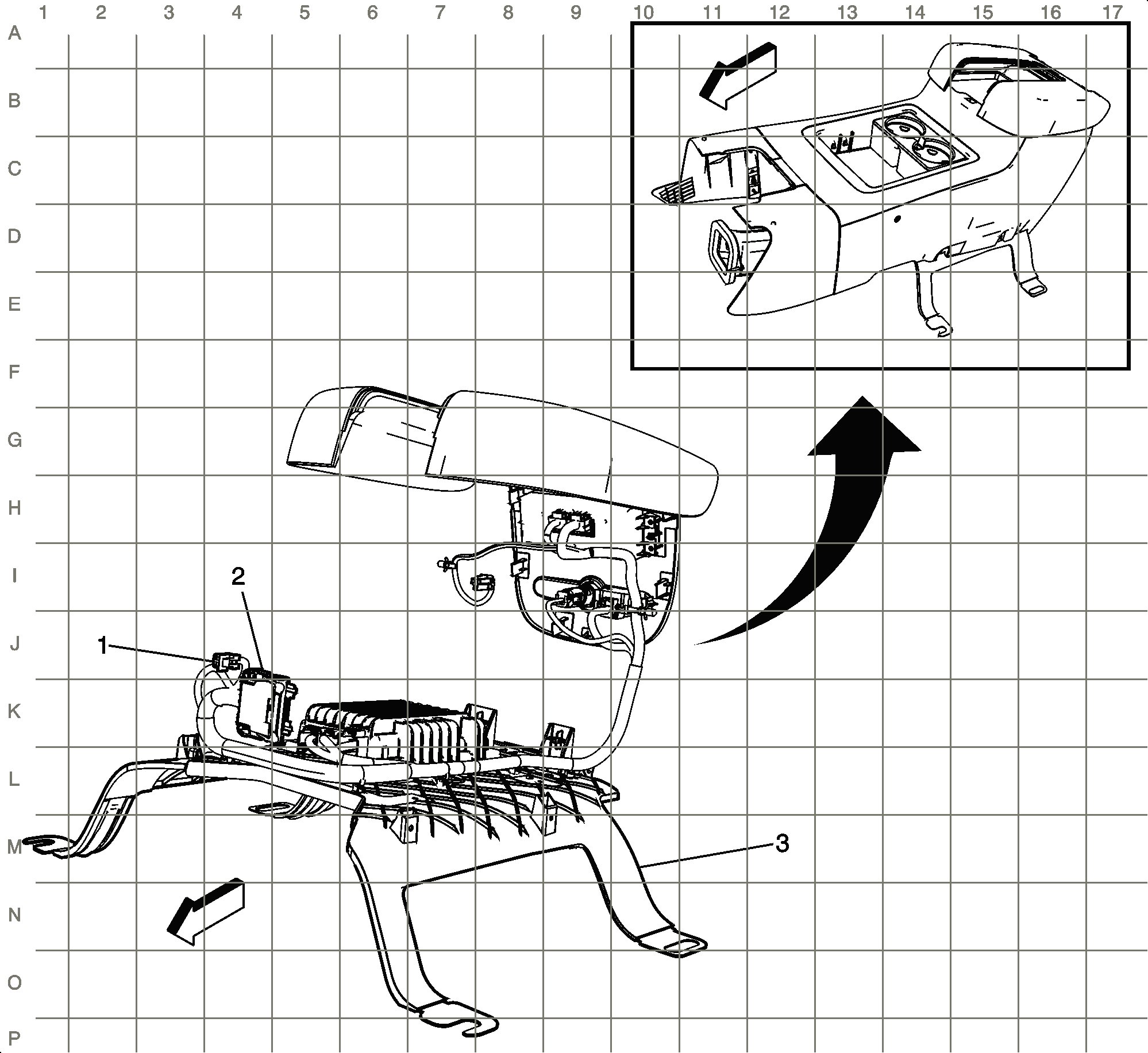

Harness Routing Views

Console Harness Routing (Y91/D07/UQA)





1 - X319 (D07with UQ3)

2 - X301

3 - Console Bracket
