Steering Column Harness Routing

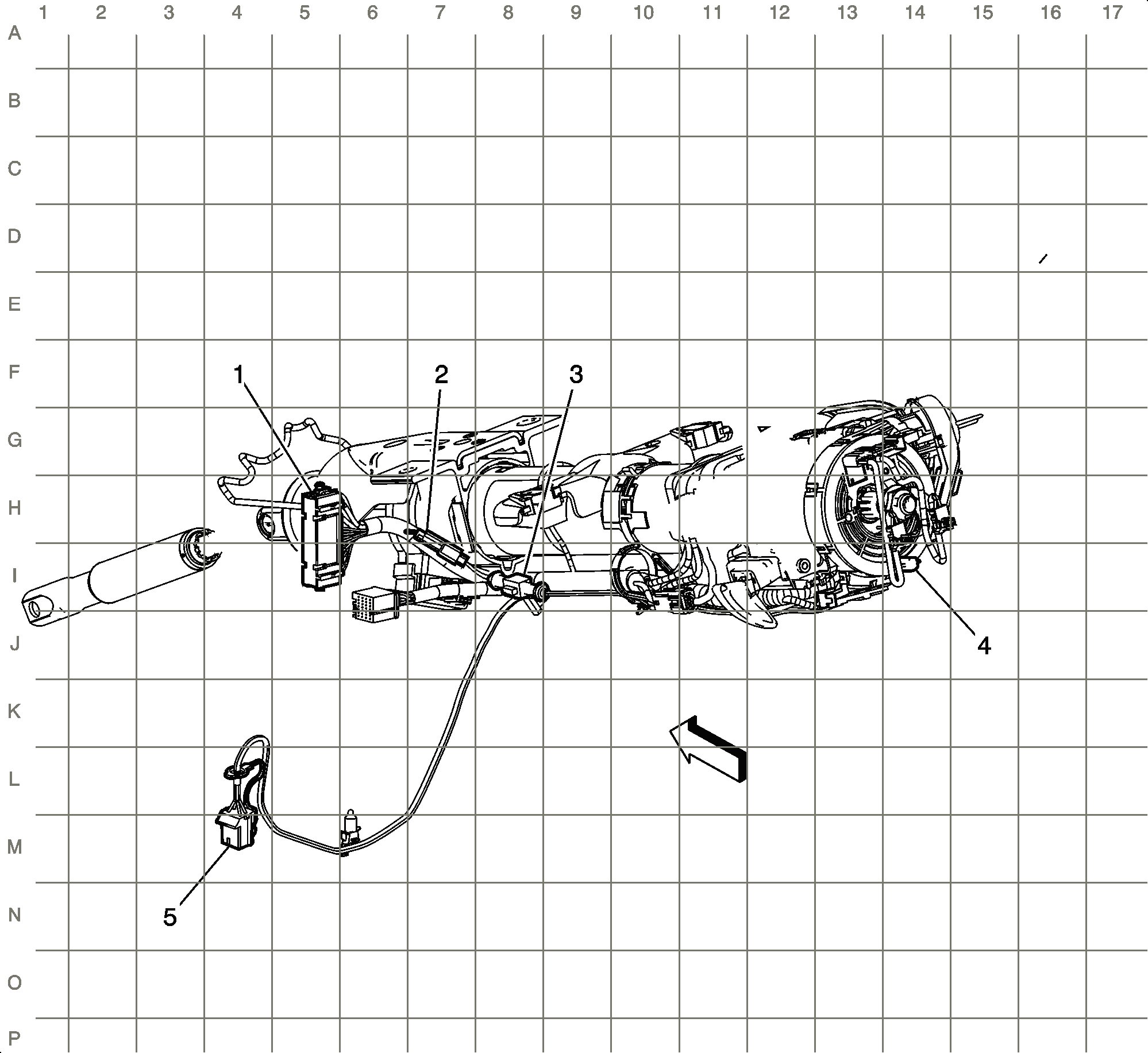

Harness Routing Views

Steering Column Harness Routing





1 - X201

2 - X276 (KA9)

3 - Heated Steering Fuse (KA9)

4 - X277 (KA9)

5 - X275
