Yaw and Lateral Accelerometer Sensor (JL4 with 10 Series)
Yaw and Lateral Accelerometer Sensor (JL4 with 10 Series)

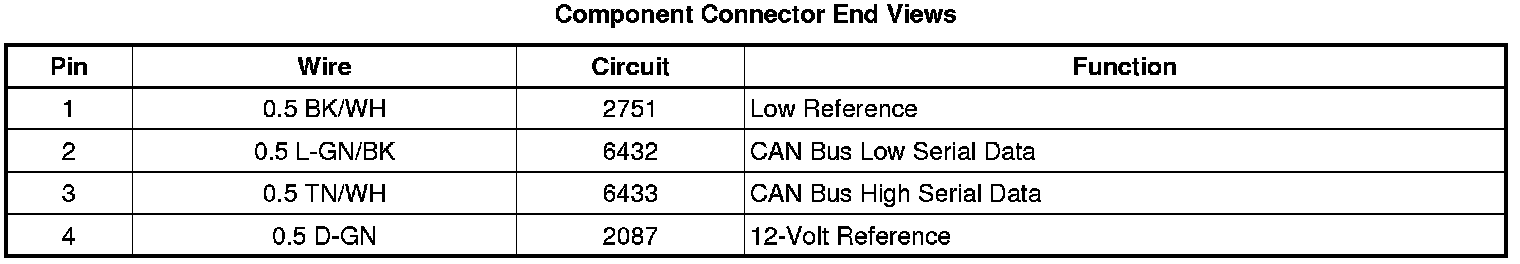

Component Connector End Views

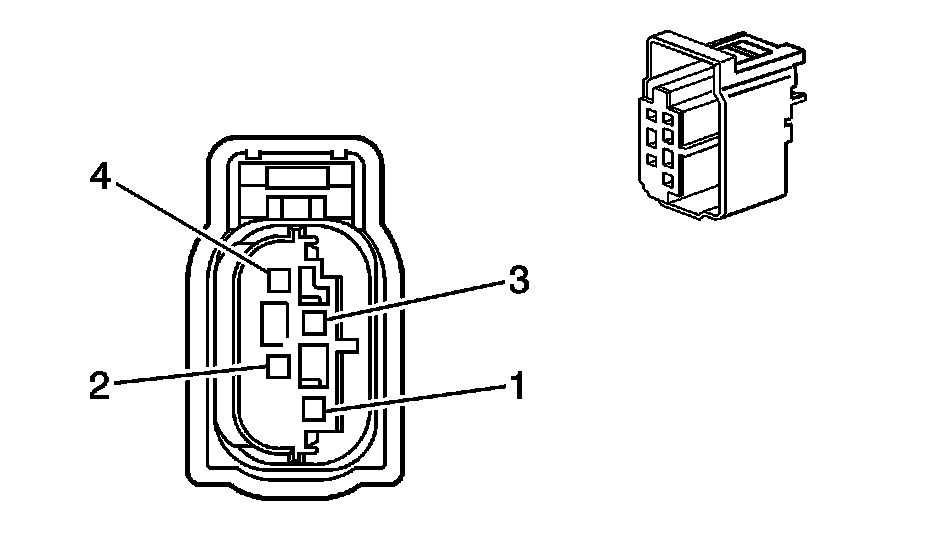

Yaw and
Lateral Accelerometer
Sensor (JL4 with 10 Series)
