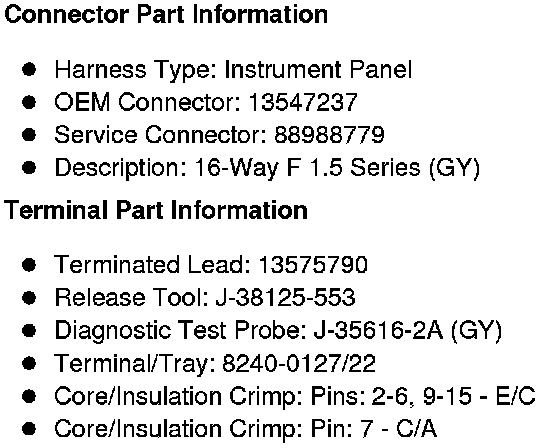

Transfer Case Shift Control Module X1 (NQF or NQH)
Transfer Case Shift Control Module X1 (NQF or NQH)

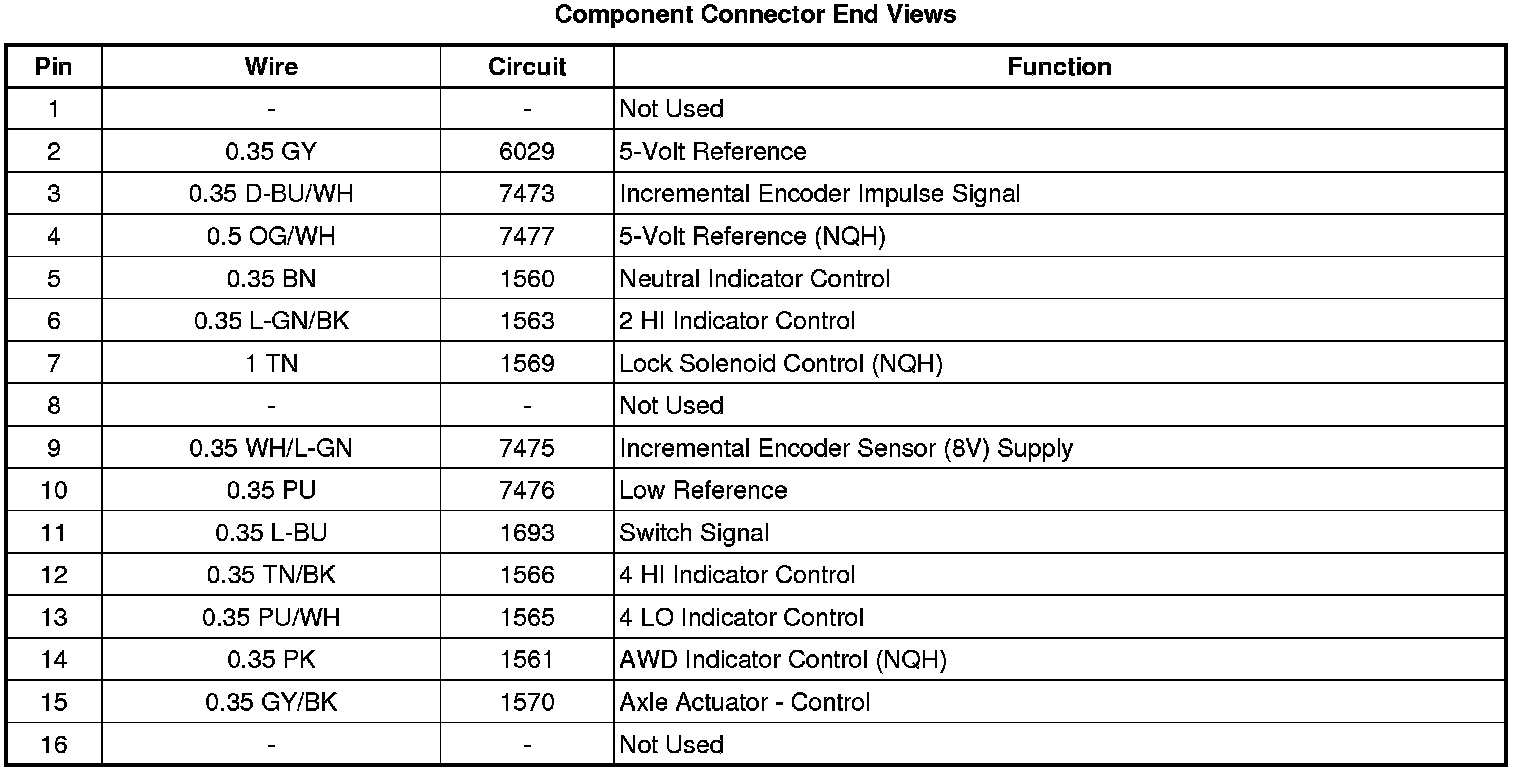

Component Connector End Views

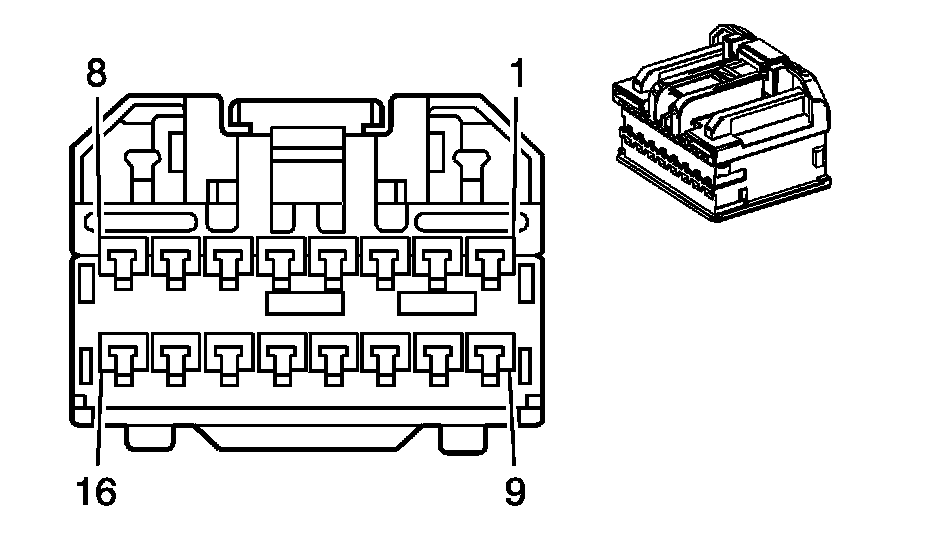

Transfer Case Shift Control Module X1 (NQF or NQH)
