X350




Inline Harness Connector End Views

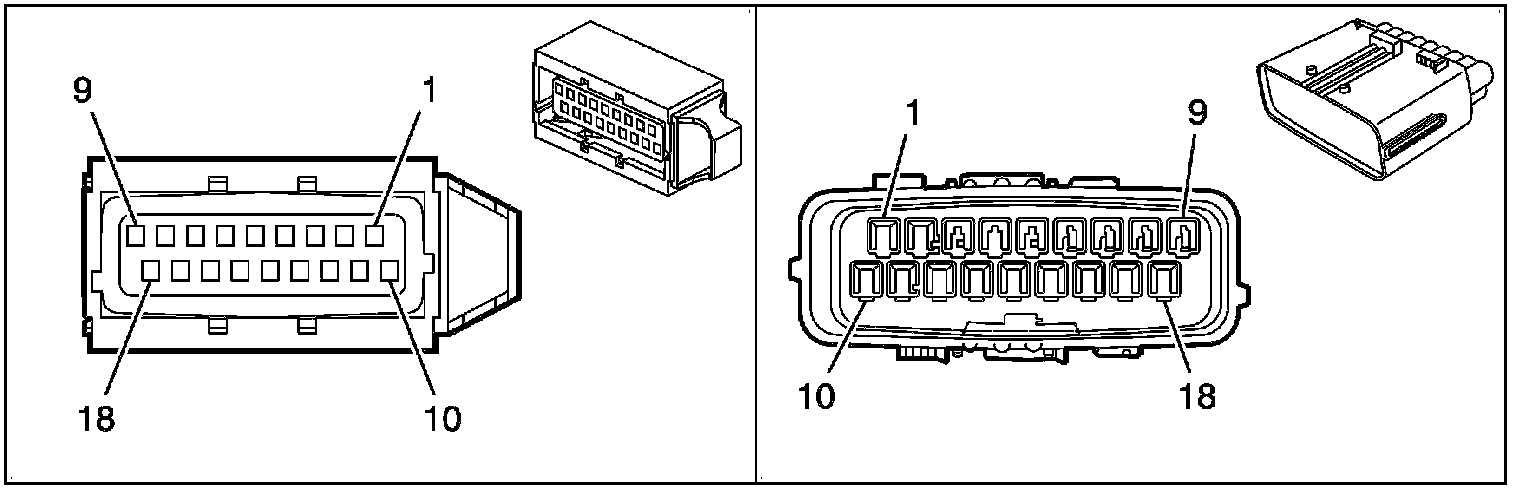

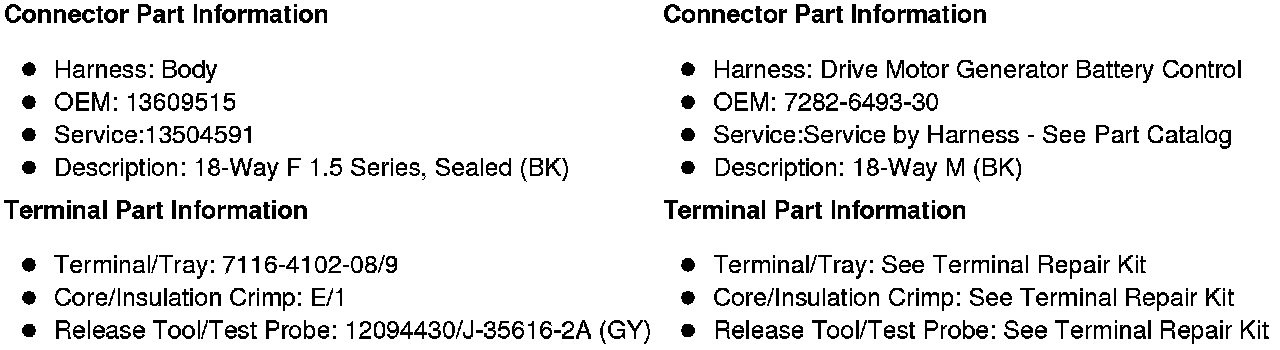

X350 Body Harness to Drive Motor Generator Battery Control Harness (HP2)
