Vehicle Communication Interface Module (VCIM) X3 (UE1 with UUL or UUK)

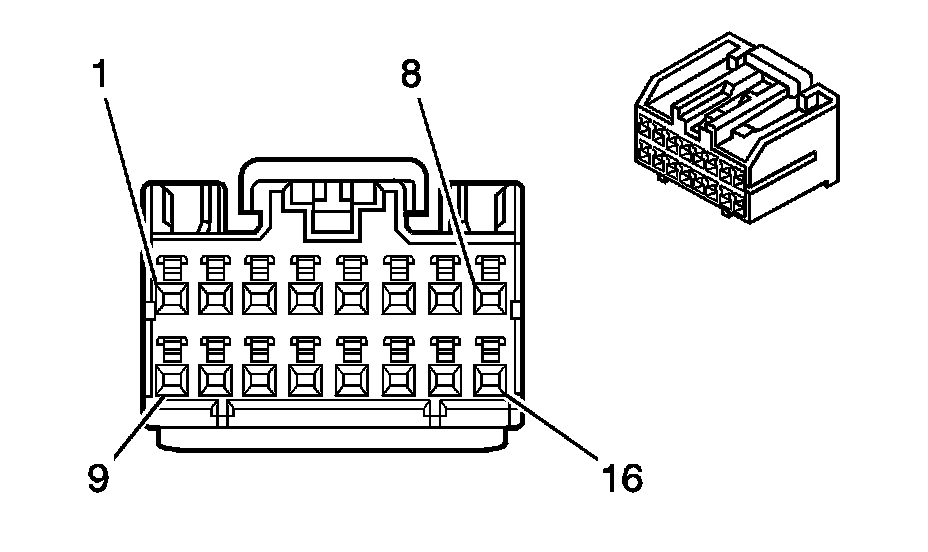

Component Connector End Views

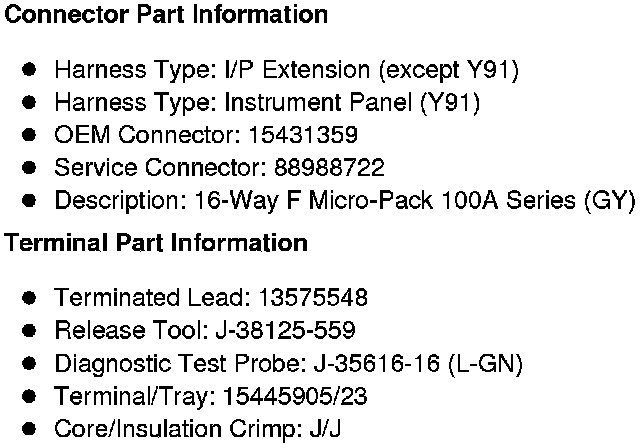

Vehicle Communication Interface Module (VCIM) X3 (UE1 with UUL or UUK)
