Diagrams
>>
Shift Solenoid (SS) Valve 1 (MW7)
Shift Solenoid (SS) Valve 1 (MW7)

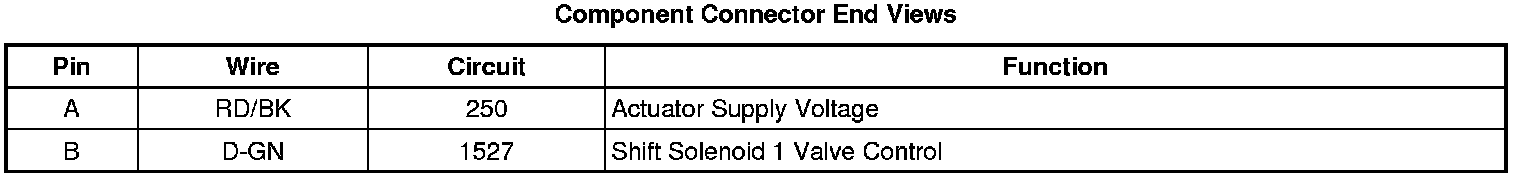

Component Connector End Views

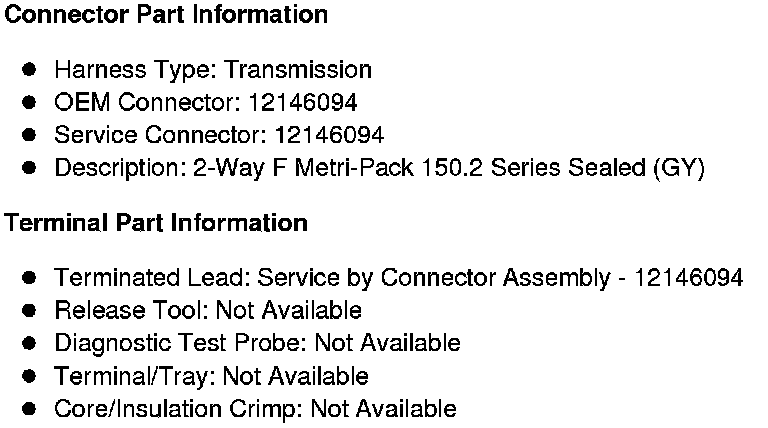

Shift Solenoid (SS) Valve 1 (MW7)
