Manual Shift Shaft Seal Replacement

Manual Shift Shaft Seal Replacement

Special Tools

* J 43911 - Selector Shaft Seal Remover

* J 43909 - Selector Shaft Seal Installer

Removal Procedure





1. Disconnect the range selector lever cable and lever from the manual shaft.

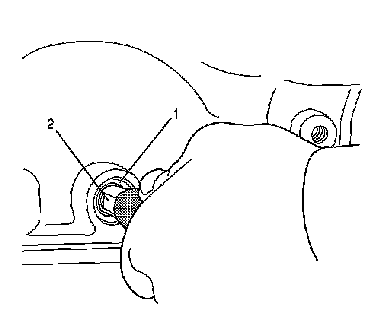

2. Ensure that the jackscrew for J 43911 - selector shaft seal remover is backed off and will not interfere with installation of the removal tool. Slide the seal remover tool over the selector shaft (2) with the threaded end of the tool towards the seal.

3. Rotate the removal tool so that the threads on the end of the tool engage the steel shell (1) of the seal. Use a wrench to ensure that the removal tool is firmly attached to the seal shell.

4. Rotate the jackscrew in the clockwise direction to remove the seal from the bore. Discard the seal that was removed.

Installation Procedure

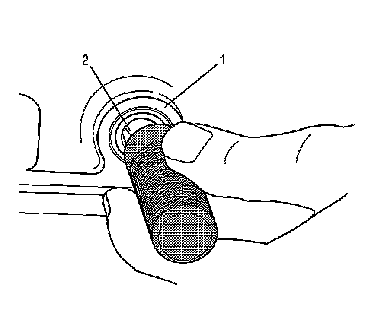

1. Carefully slide a new selector shaft seal (1) over the selector shaft (2) with the wide face of the steel case facing outward. Position the seal so that it is starting to enter the seal bore.

2. Obtain J 43909 - selector shaft seal installer and remove the inner sleeve so that the tool will slide over the selector shaft.

3. Slide the J 43909 - selector shaft seal installer into position so that the end of the tool contacts the seal being installed. Use a mallet to strike the J 43909 - selector shaft seal installer and drive the new seal into the bore until it is seated at the bottom of the bore.

4. Connect the range selector lever cable and lever to the manual shaft.

5. Fill the transmission to the proper level with DEXRON(R) VI transmission fluid. Refer to Transmission Fluid Level and Condition Check Testing and Inspection.
