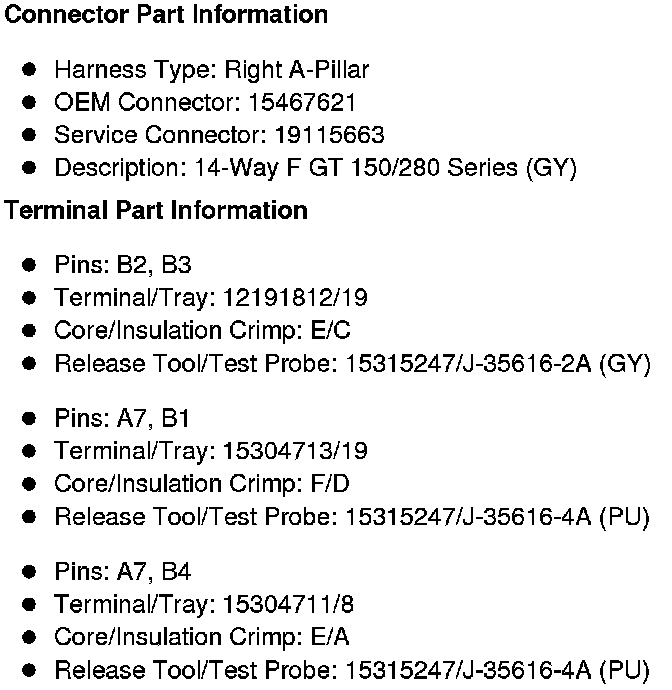

Junction Block - Right I/P X2
Junction Block - Right I/P X2

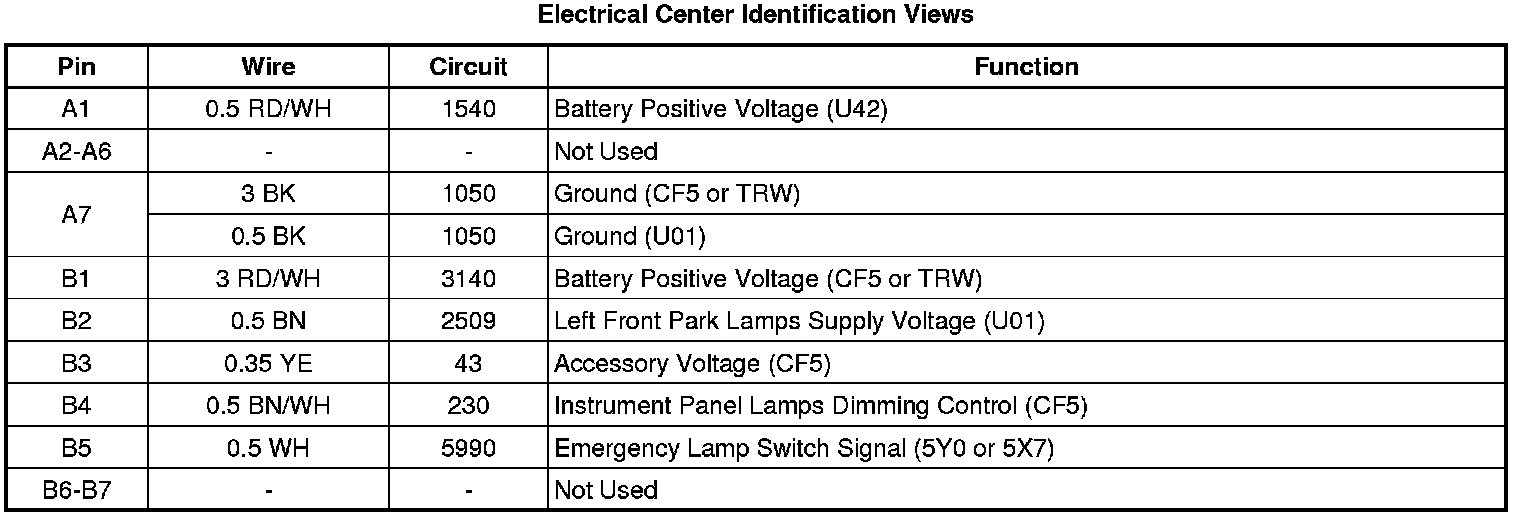

Electrical Center Identification Views
Junction Block - RIght I/P X2
