Home
>>
Chevy Truck
>>
2013
>>
Silverado 3500 2WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Locations
>>

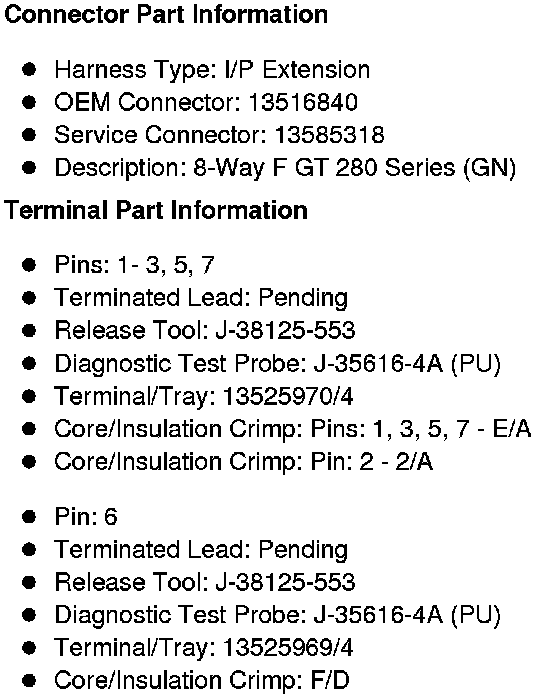

Junction Block - Left I/P X3 (except MEX)
Junction Block - Left I/P X3 (except MEX)

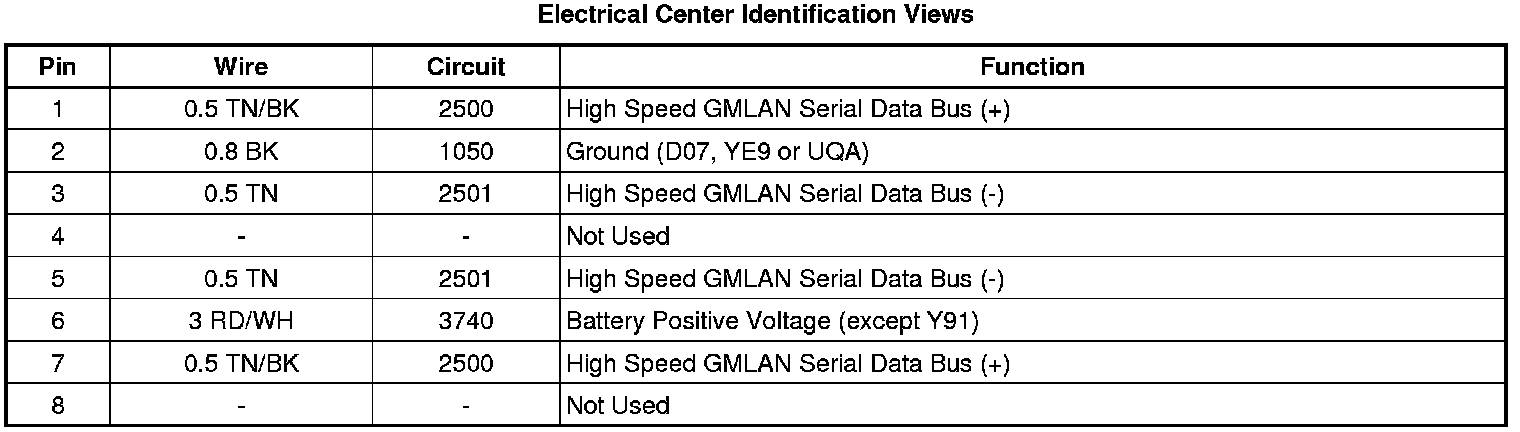

Electrical Center Identification Views
Junction Block - Left I/P X3 (except MEX)
