Home >> Chevy Truck >> 2013 >> Silverado 3500 2WD V8-6.0L (CNG) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Service and Repair >> Removal and Replacement >> 175 Amp Mega Fuse Replacement (Auxiliary Battery)

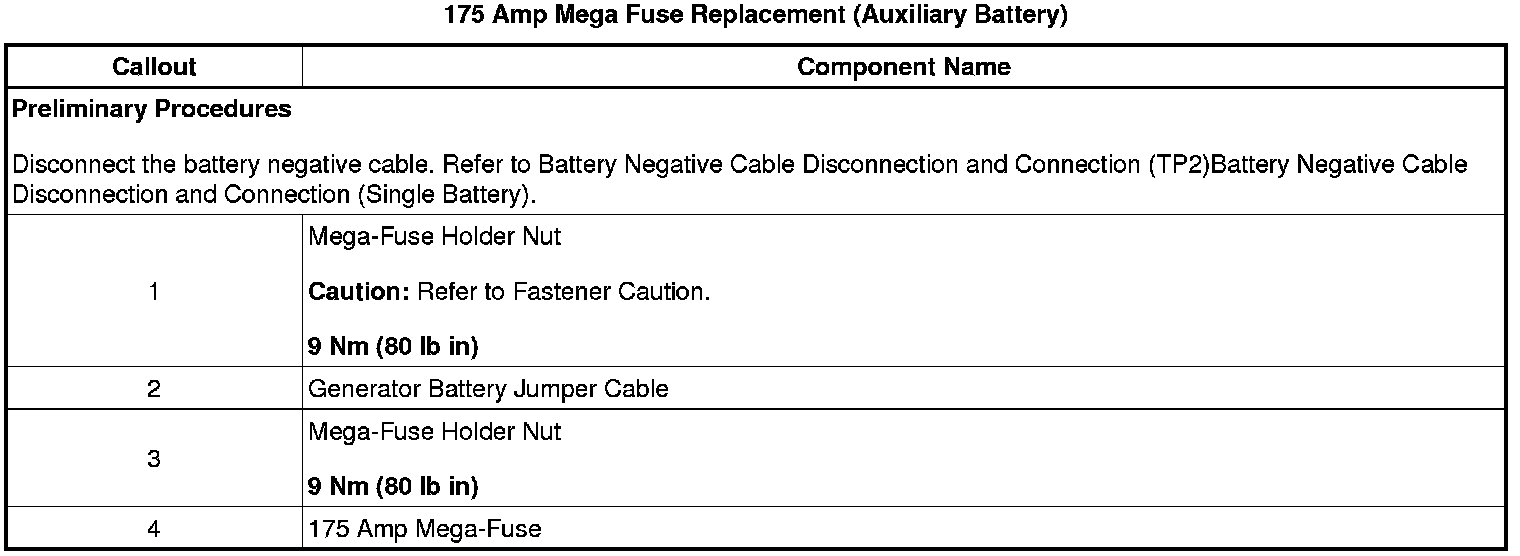

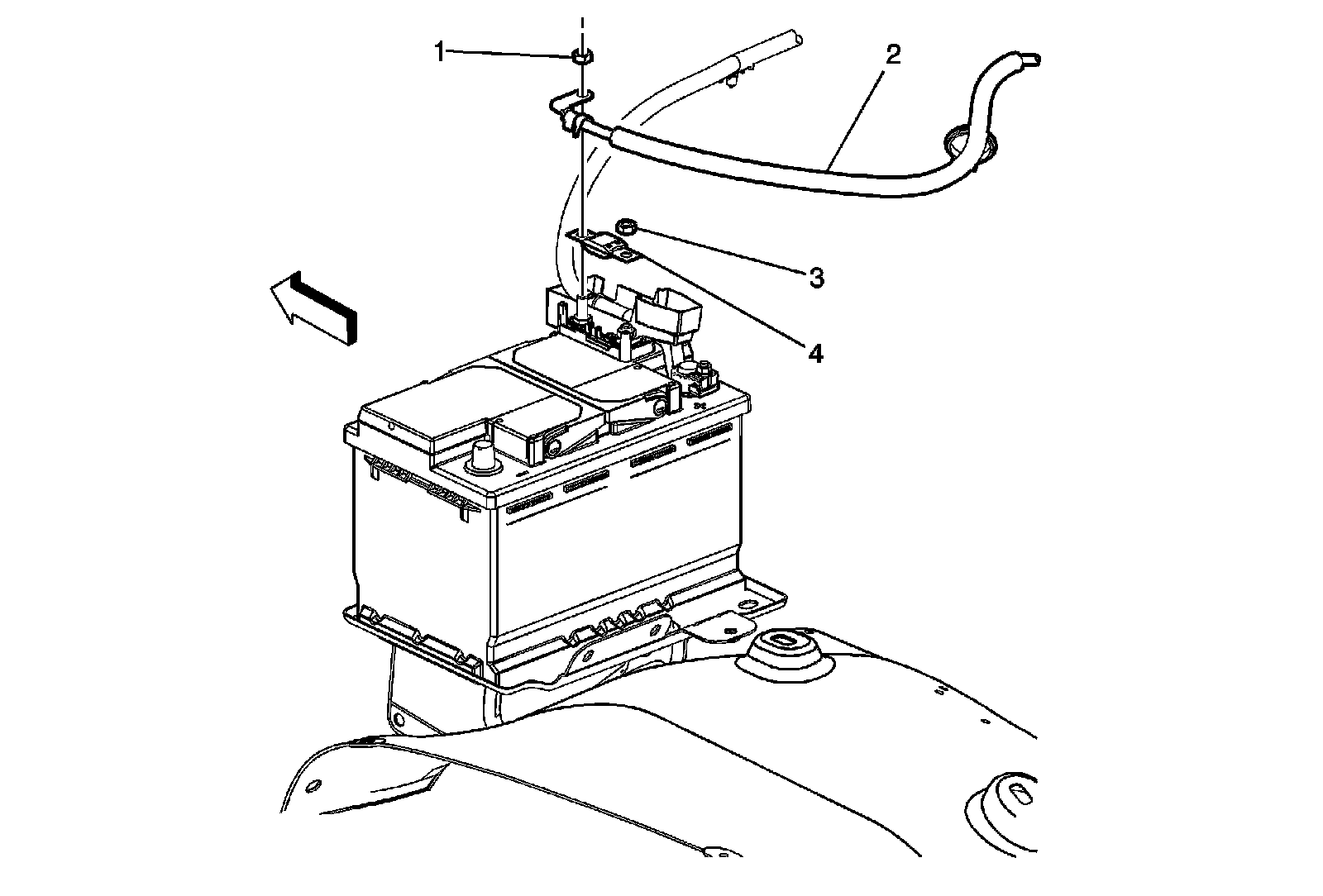

175 Amp Mega Fuse Replacement (Auxiliary Battery)




175 Amp Mega Fuse Replacement (Auxiliary Battery)
