Junction Block - Rear Lamps Connector

Harness Routing Views

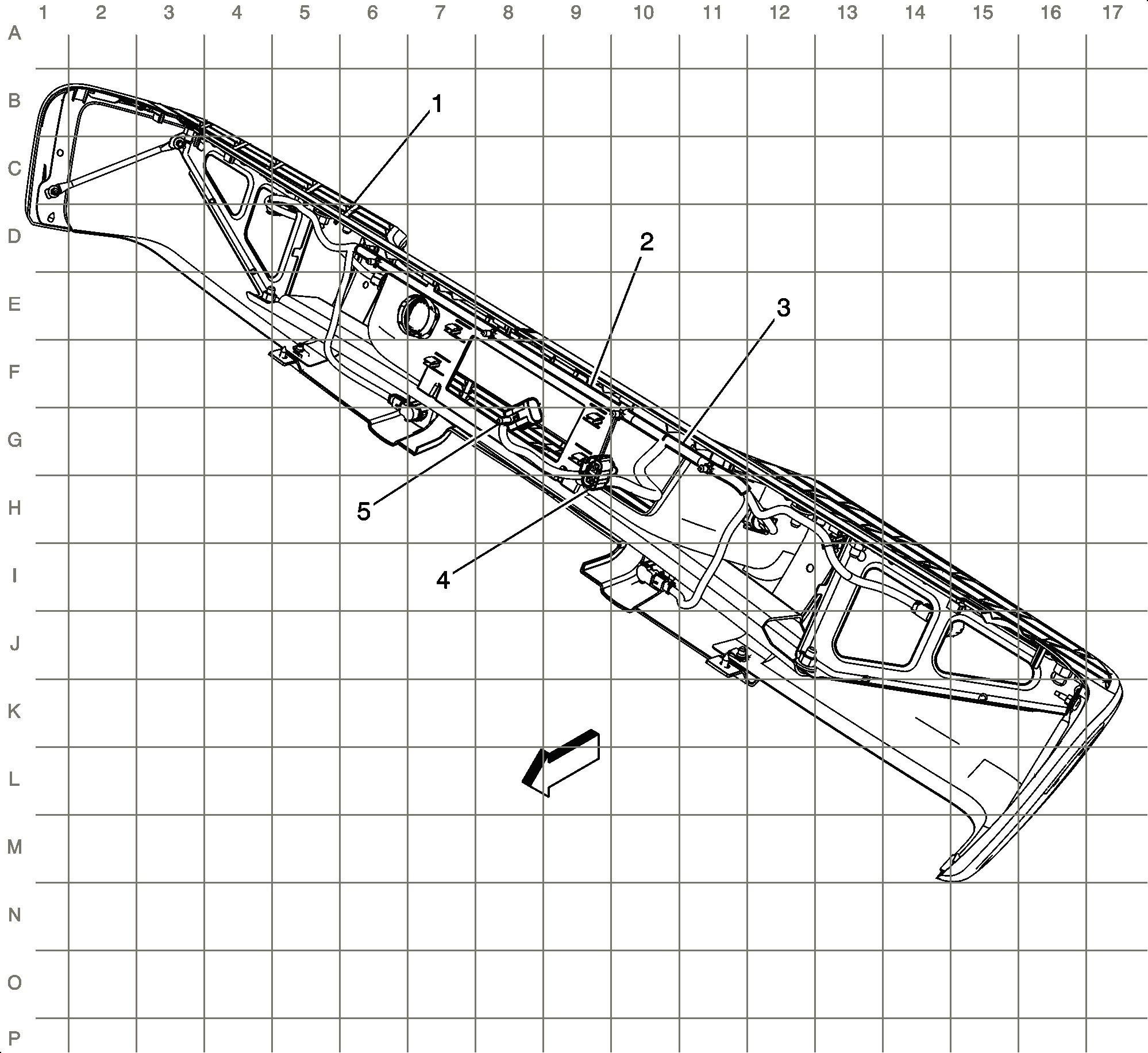

Rear Bumper Harness Routing





1 - Rear Bumper

2 - J403 (UD7)

3 - J404 (UD7)

4 - Junction Block- Rear Lamps Connector

5 - X408 (UD7)
