Silverado 3500 2WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>

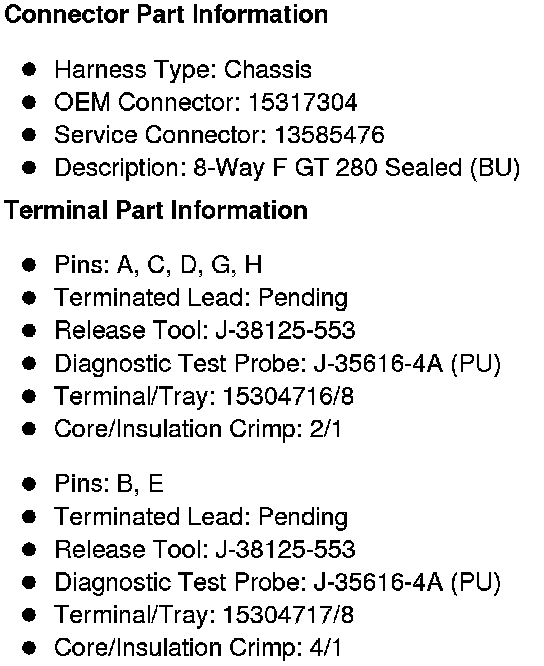

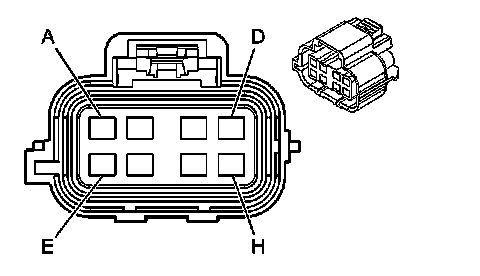

Junction Block - Rear Lamps X1
Junction Block - Rear Lamps X1

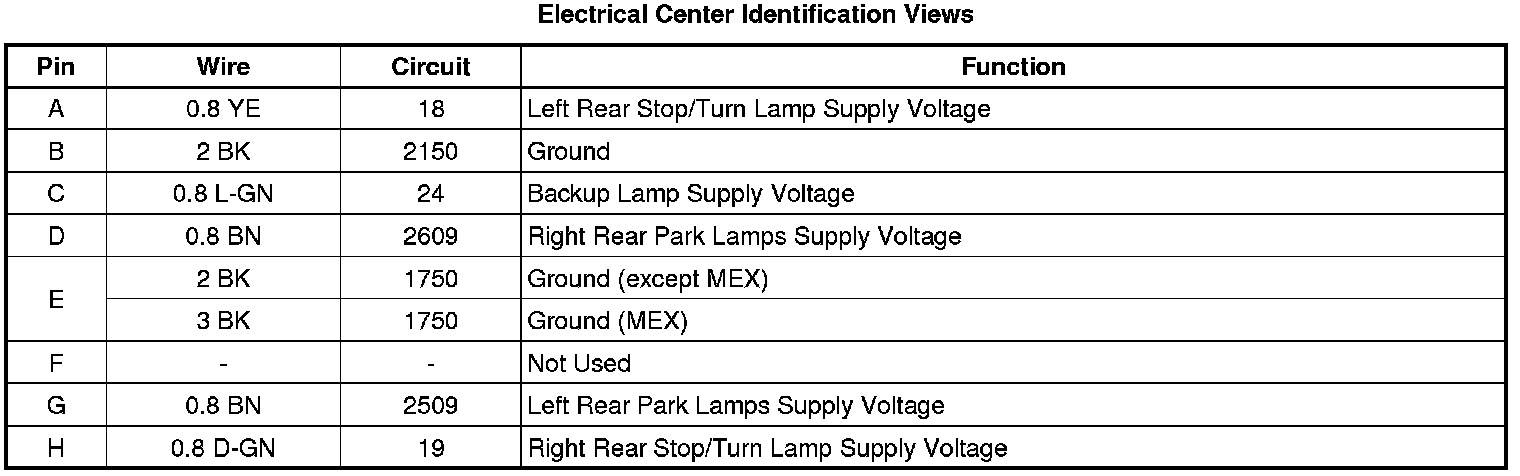

Electrical Center Identification Views
Junction Block - Rear Lamps X1
