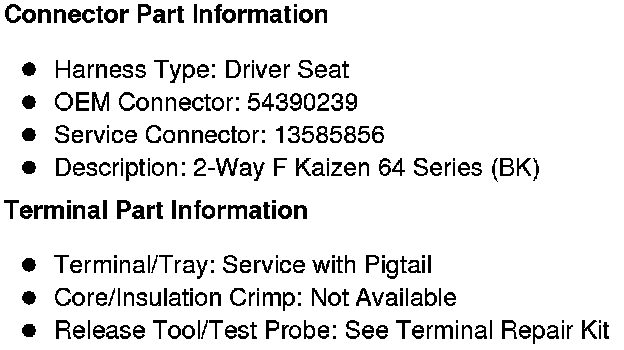

Inflatable Restraint Seat Position Sensor - Driver (10 Series except MEX)

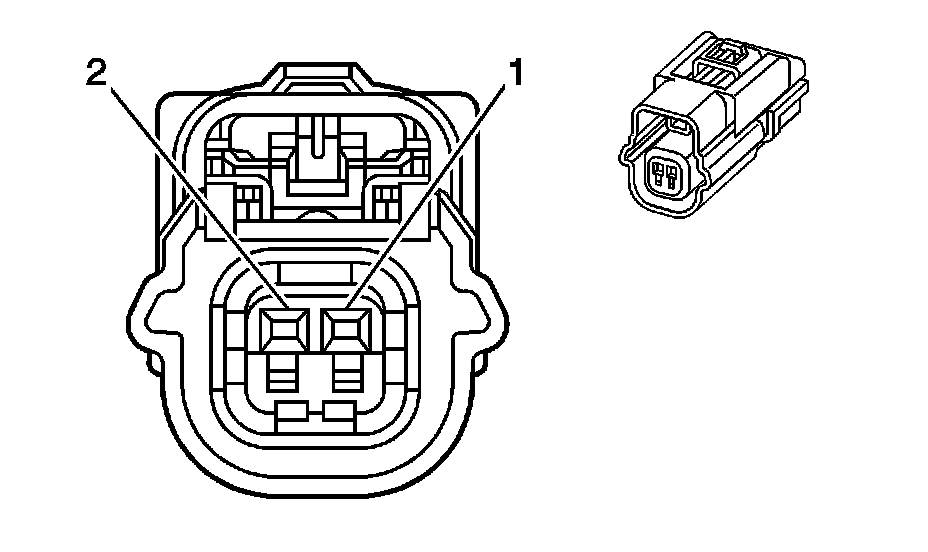

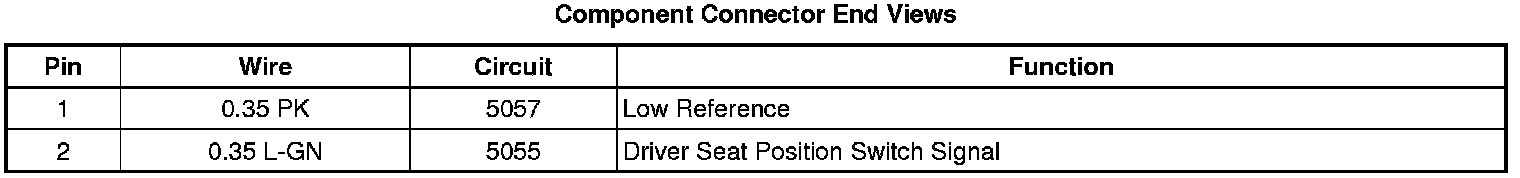

Component Connector End Views

Inflatable Restraint Seat Position Sensor - Driver (10 Series except MEX)
