Air Conditioning Cycling Switch Replacement

Air Conditioning Cycling Switch Replacement (Non-HP2)

Special Tools

J-39400-A - Halogen Leak Detector

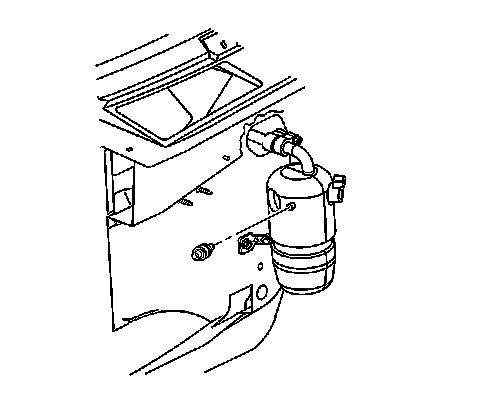

Removal Procedure

1. Disconnect the electrical connector from the A/C low pressure switch.




2. Remove the A/C low pressure switch from the accumulator.

3. Remove the O-ring and discard.

Installation Procedure

1. Install the new O-ring seal to the switch. Refer to Air Conditioning O-Ring Seal Replacement Air Conditioning O-Ring Seal Replacement.





Caution: Refer to Fastener Caution Fastener Caution.

2. Install the A/C low pressure switch to the accumulator and tighten to 6 Nm (53 lb in).

3. Connect the electrical connector to the A/C low pressure switch.

4. Leak test the fittings of the components using theJ-39400-A - halogen leak detector.
