Evaporator Temperature Sensor / Switch: Diagrams

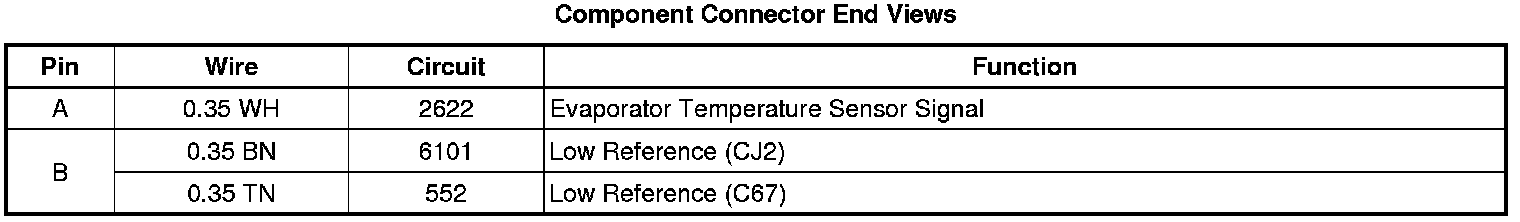

Component Connector End Views

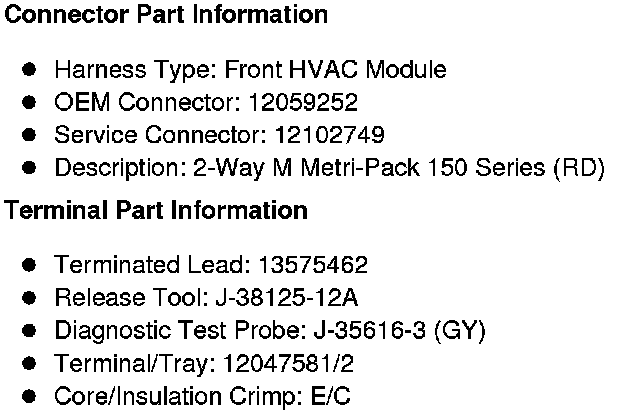

Evaporator Temperature Sensor (except HP2)
