Valve Deactivation Solenoid: Diagrams

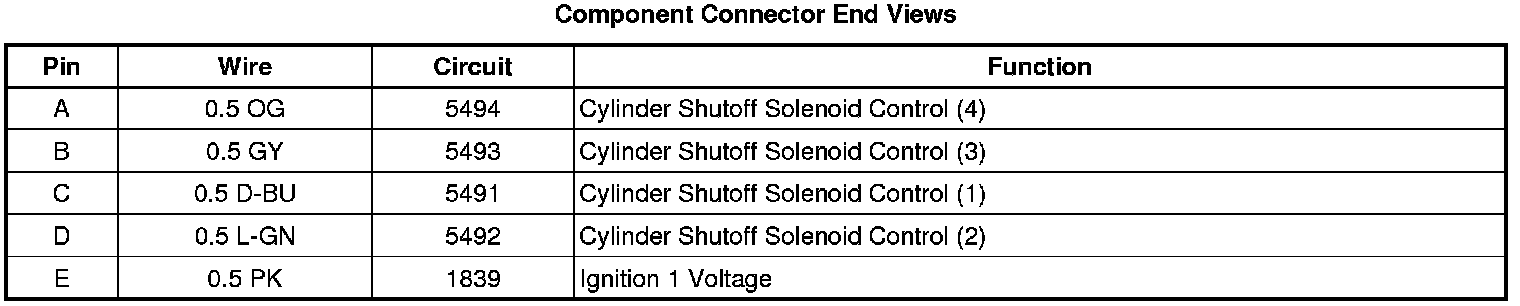

Component Connector End Views

Valve Lifter Oil Manifold (VLOM) Assembly (LMG, LC9, LZ1 or L96)
