Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (L96 without ZW9)

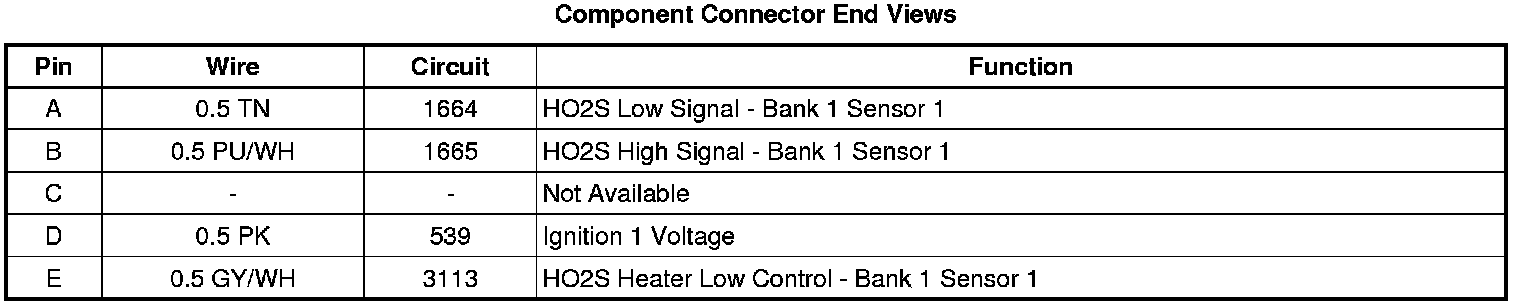

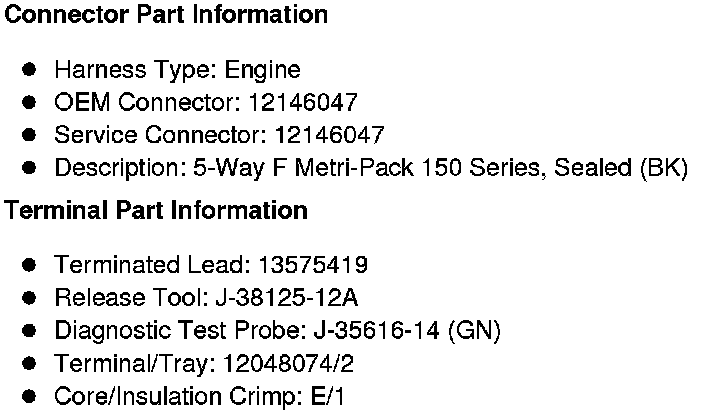

Component Connector End Views

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (L96 without ZW9)
