Home
>>
Chevy Truck
>>
2013
>>
Silverado 3500 2WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Side Marker Lamp - Right Front (Z88)
Side Marker Lamp - Right Front (Z88)

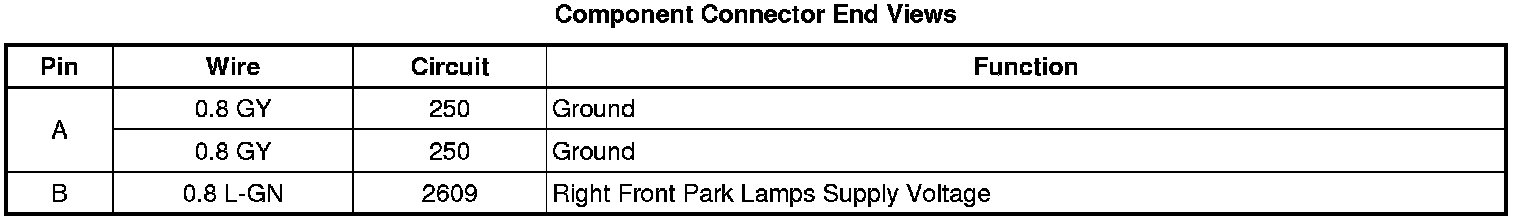

Component Connector End Views
Side Marker Lamp - Right Front (Z88)
