FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2013
>>
Silverado 3500 2WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Starting and Charging Schematics
Starting and Charging Schematics
Starting and Charging
Schematics
Starting

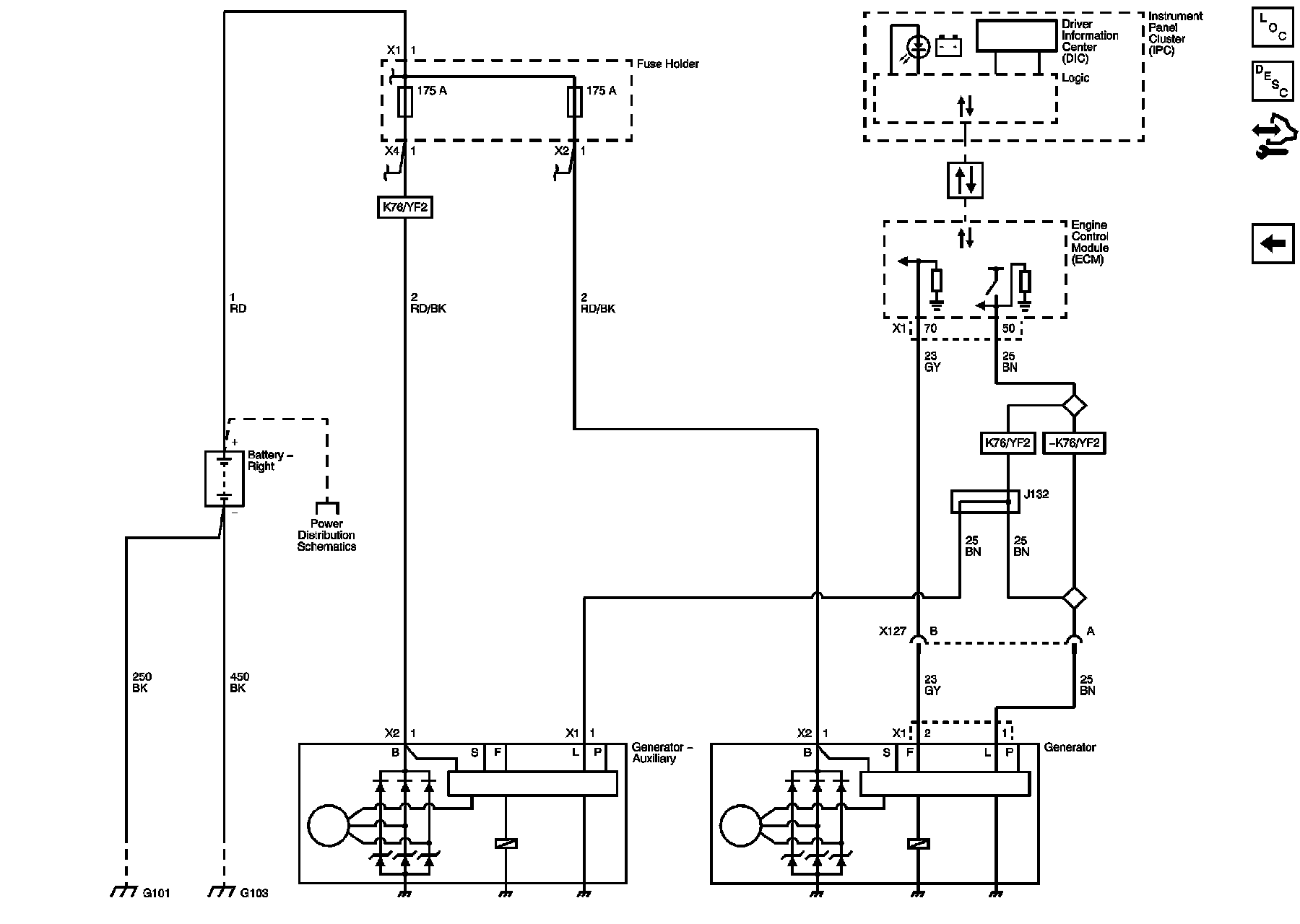

Charging (Gas)
Charging (Diesel)
