Home >> Chevy Truck >> 2013 >> Silverado 3500 2WD V8-6.0L (CNG) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G312

G312

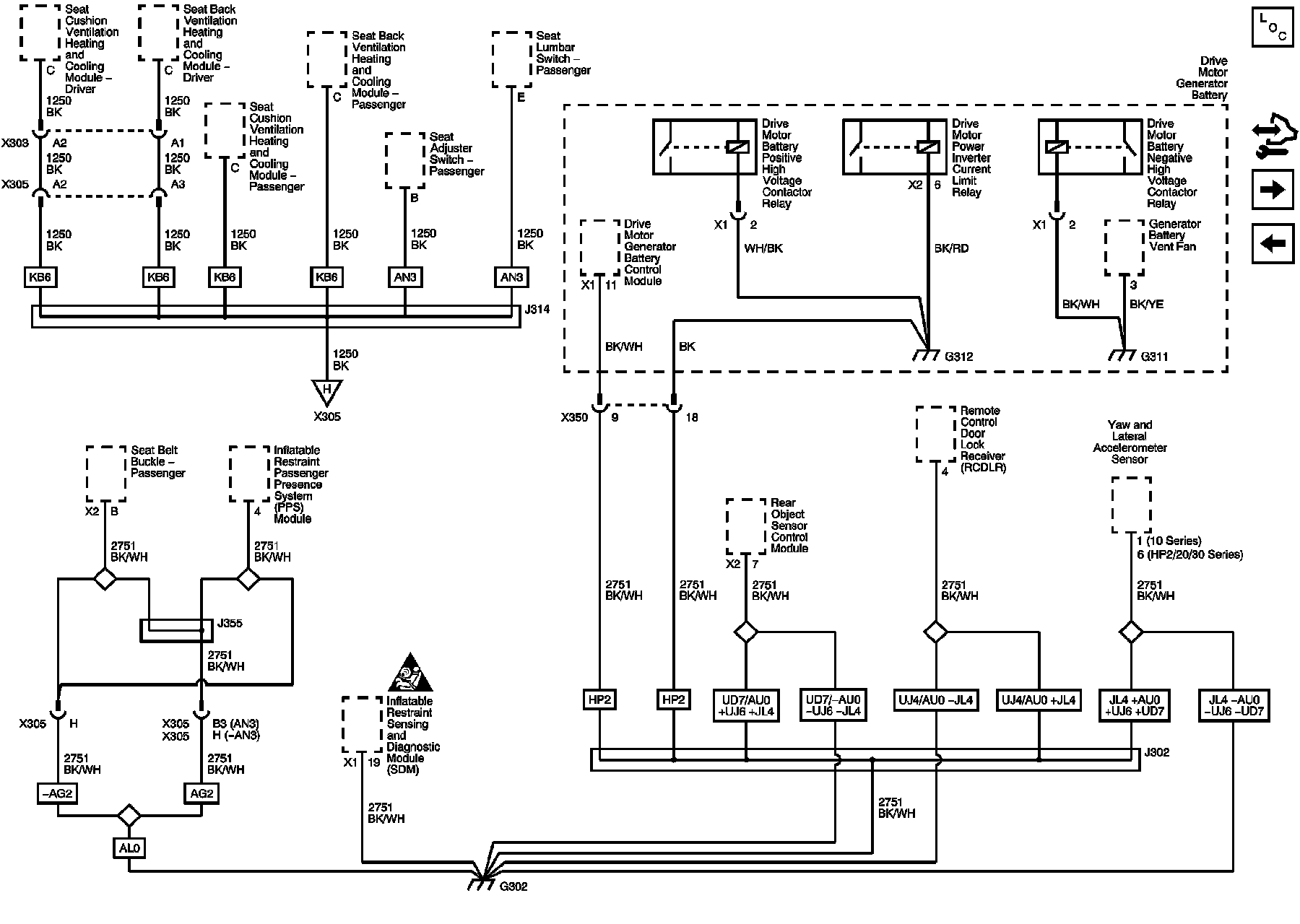

Ground Distribution Schematics

G302, G311, and G312
