Headlights/Daytime Running Lights (DRL) Schematics




Headlights/Daytime Running Lights (DRL) Schematics

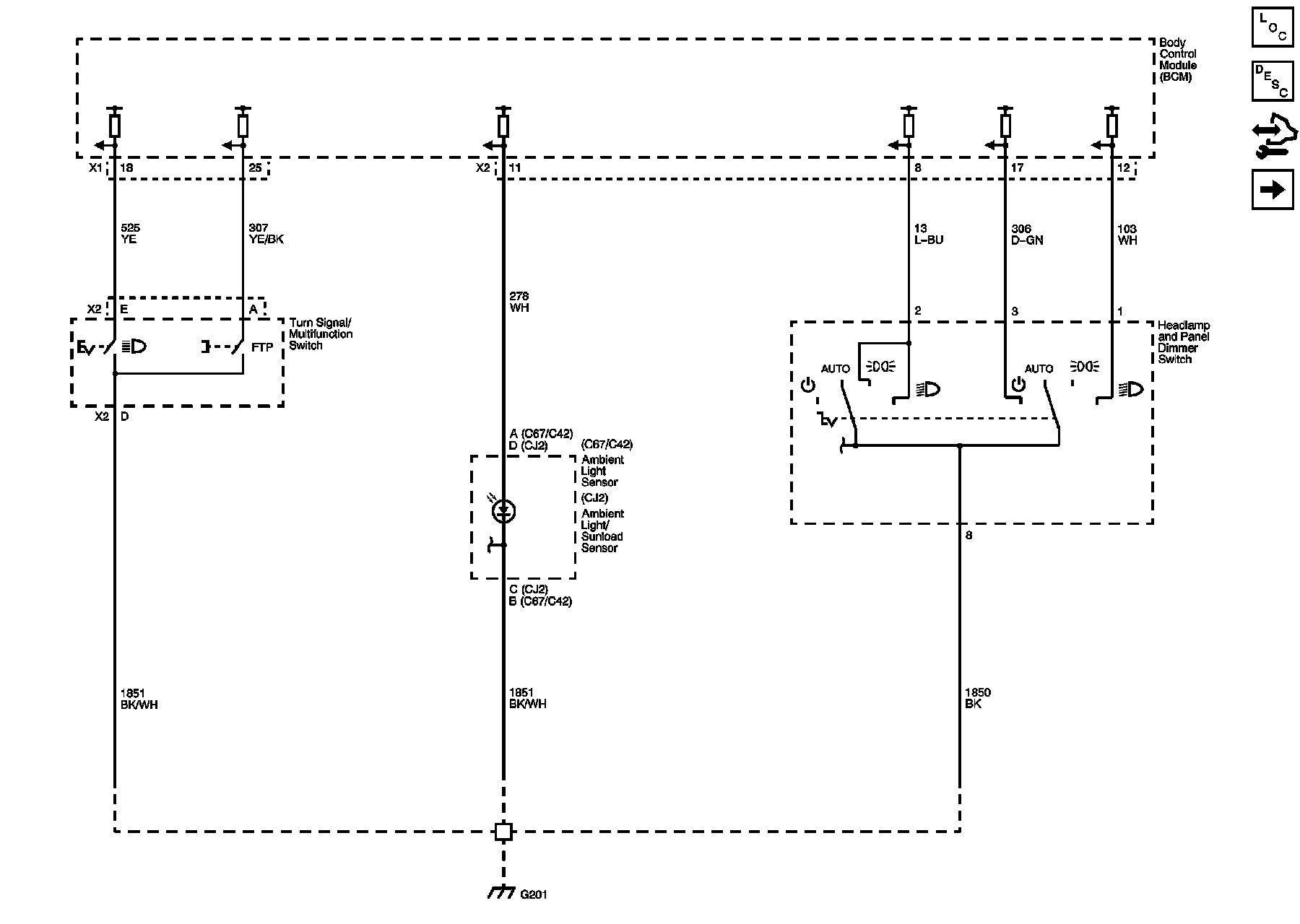

Headlight and Daytime Running Light Control

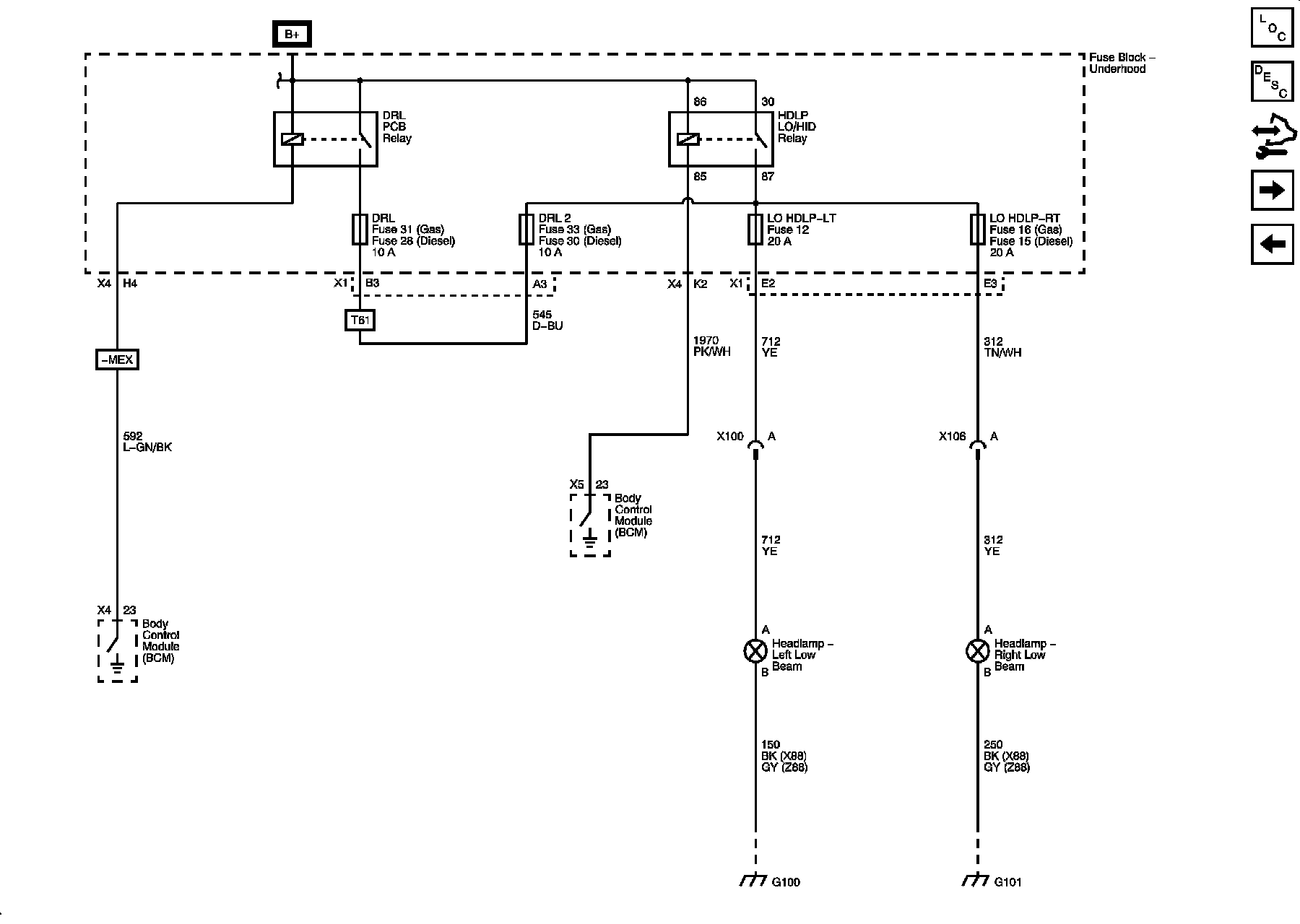

Low Beam and Daytime Running Lights

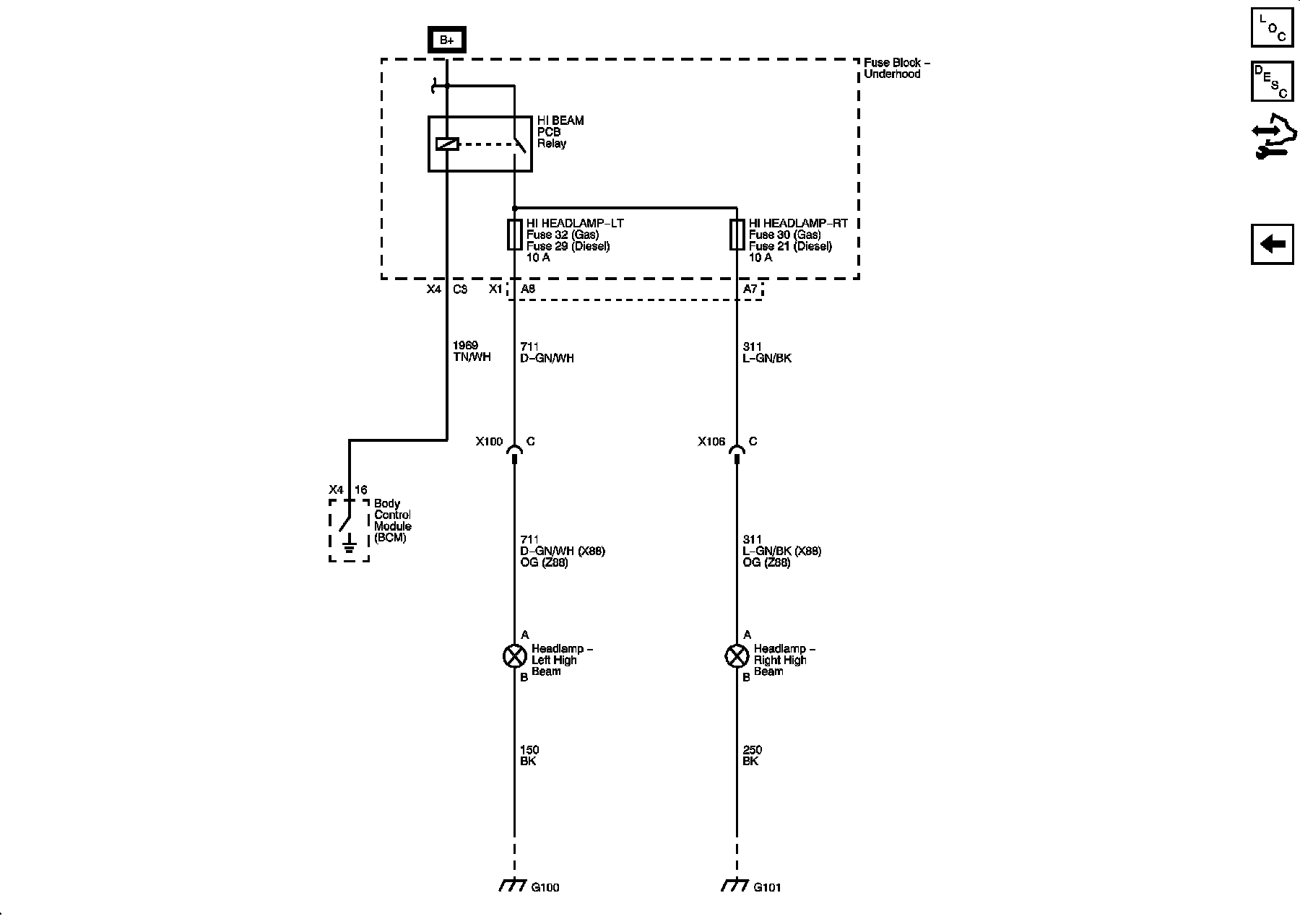

High Beams
