X303
>>
Driver Seat Harness to Body Harness (MEX or A52)
Driver Seat Harness to Body Harness (MEX or A52)

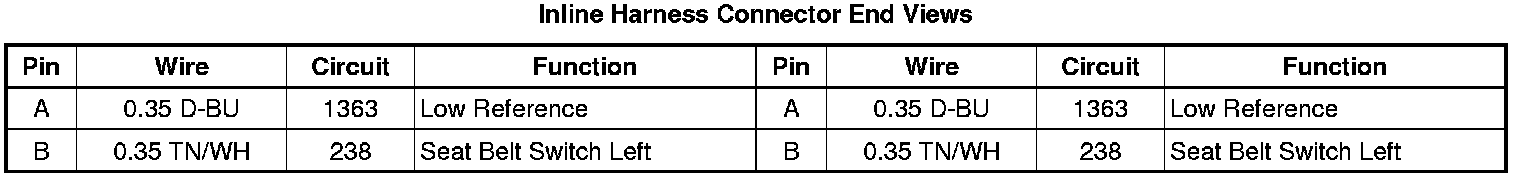

Inline Harness Connector End Views

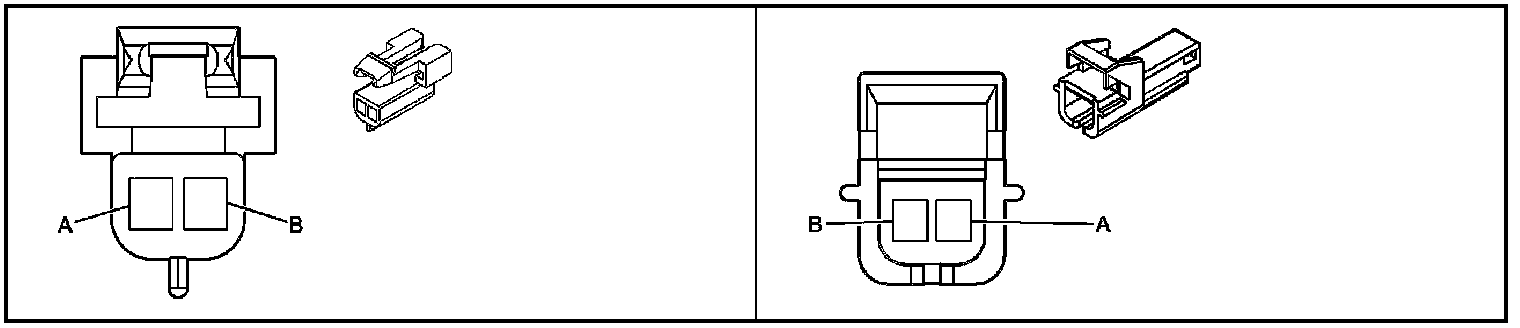

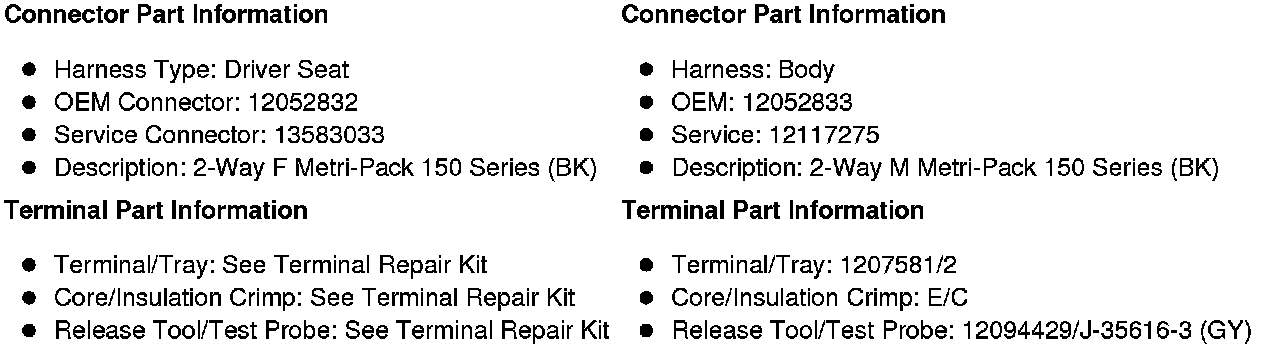

X303 Driver Seat Harness to Body Harness (MEX or A52)
