Brake Master Cylinder Pressure Sensor (JL1)
Brake Master Cylinder Pressure Sensor (JL1)

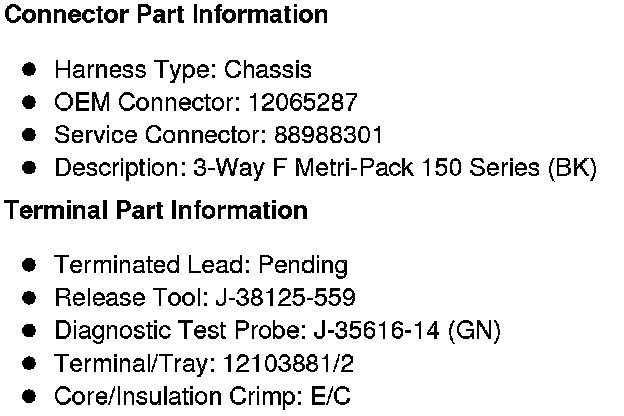

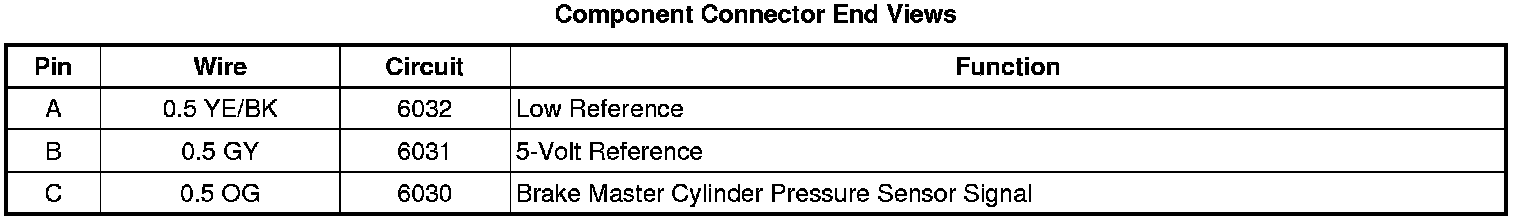

Component Connector End Views
Brake Master Cylinder
Pressure Sensor (JL1)
