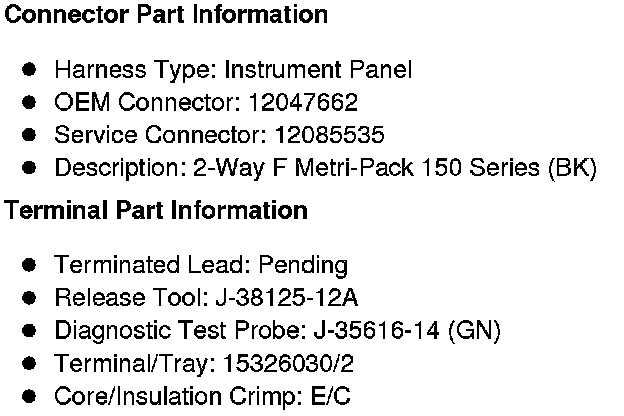

Ambient Light Sensor (C42 or C67 or MEX)
Ambient Light Sensor (C42 or C67 or MEX)

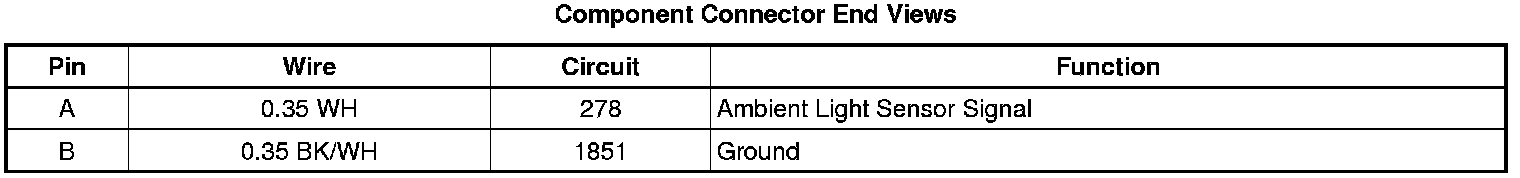

Component Connector End Views
Ambient Light Sensor
(C42 or C67 or MEX)
