Outside Rearview Mirror - Driver (DL8 or DPN without AN3)
Outside Rearview Mirror - Driver (DL8 or DPN without AN3)

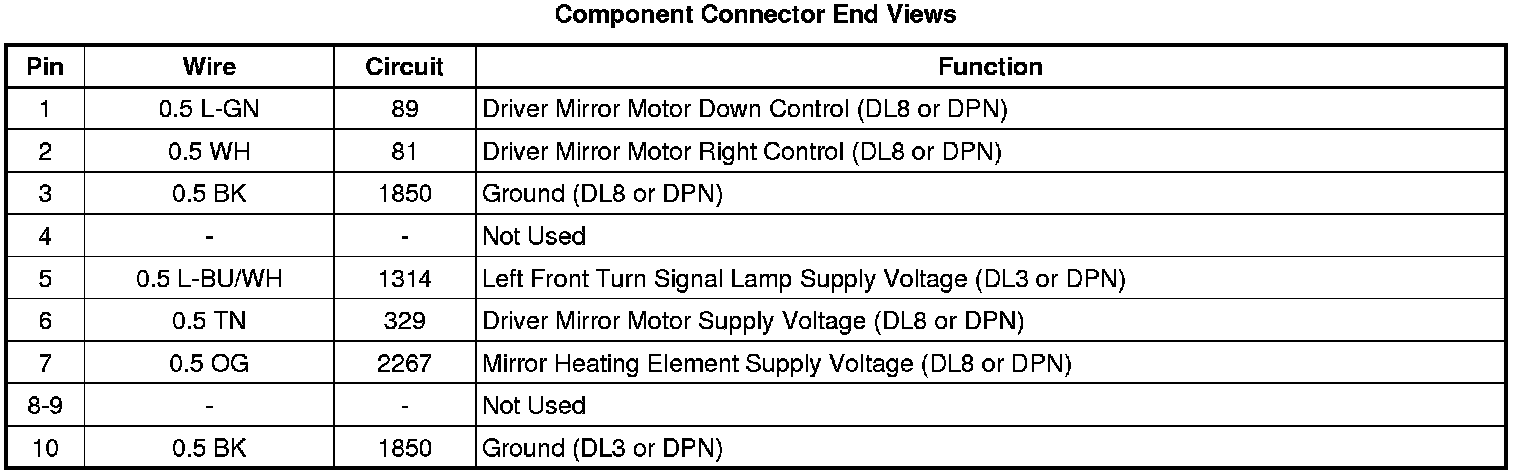

Component Connector End Views

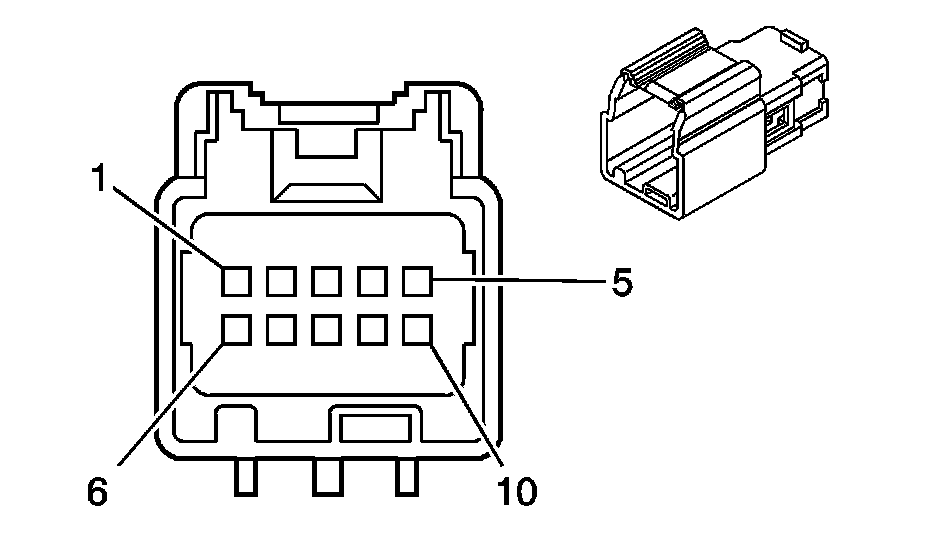

Outside Rearview Mirror - Driver (DL8 or DPN without AN3)
