Front Door Handle: Locations




Harness Routing Views

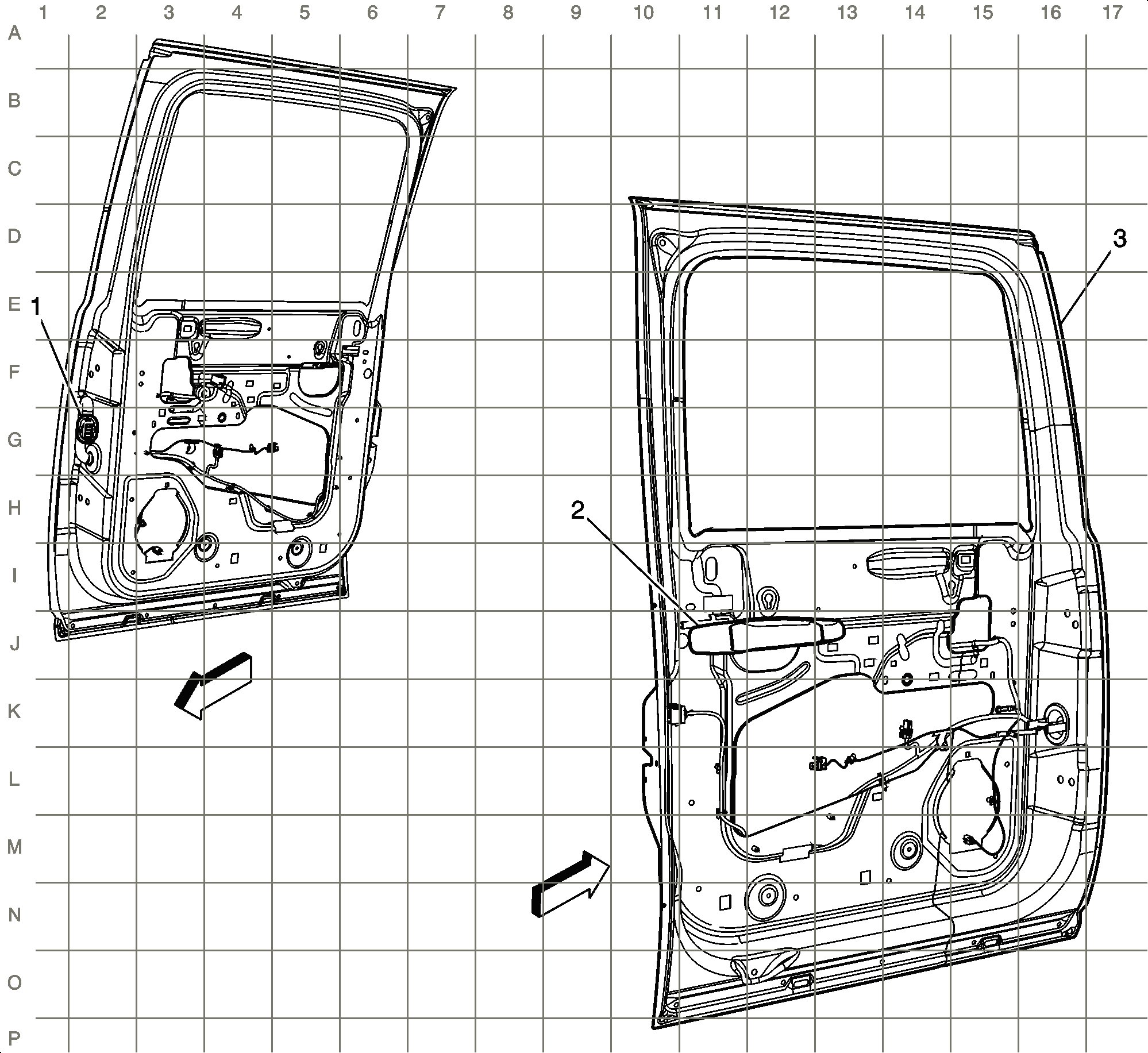

Right Rear Door Harness Routing (Crew Cab)





1 - X800

2 - Door Handle

3 - Door Frame
