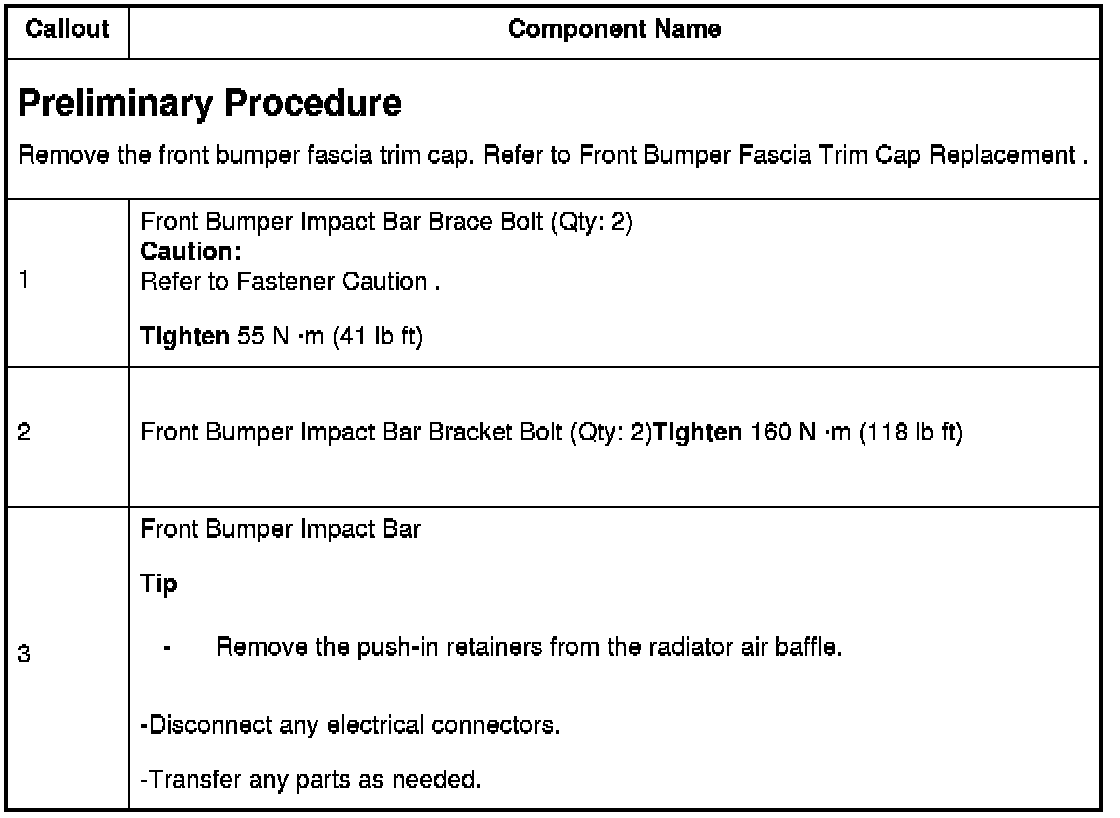

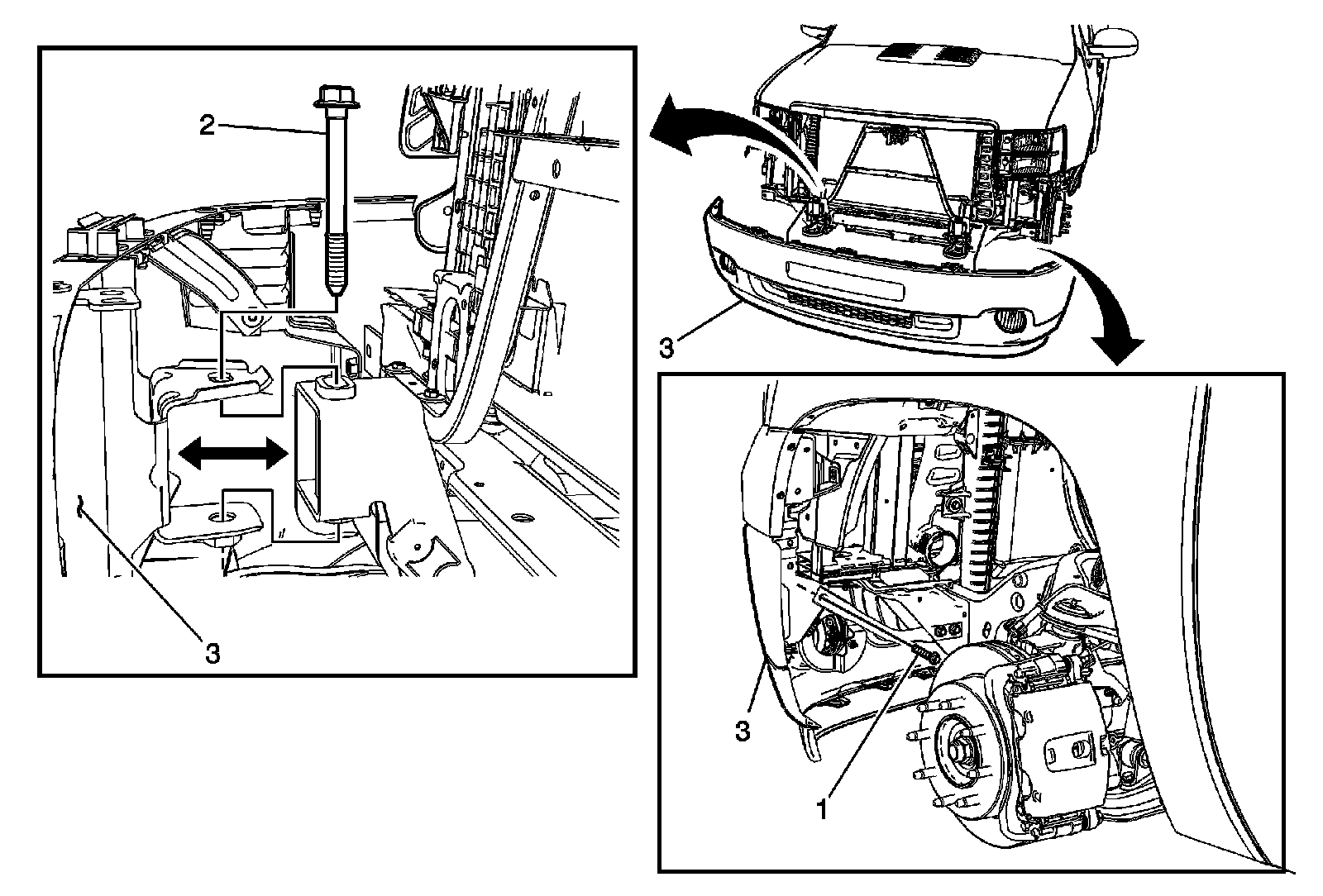

Front Bumper Impact Bar Removal and Installation (GMC)






Front Bumper Impact Bar Removal and Installation (GMC)











-Disconnect any electrical connectors.

-Transfer any parts as needed.
