Front Bumper Impact Bar Removal and Installation (Chevrolet)

Front Bumper Impact Bar Removal and Installation (Chevrolet)

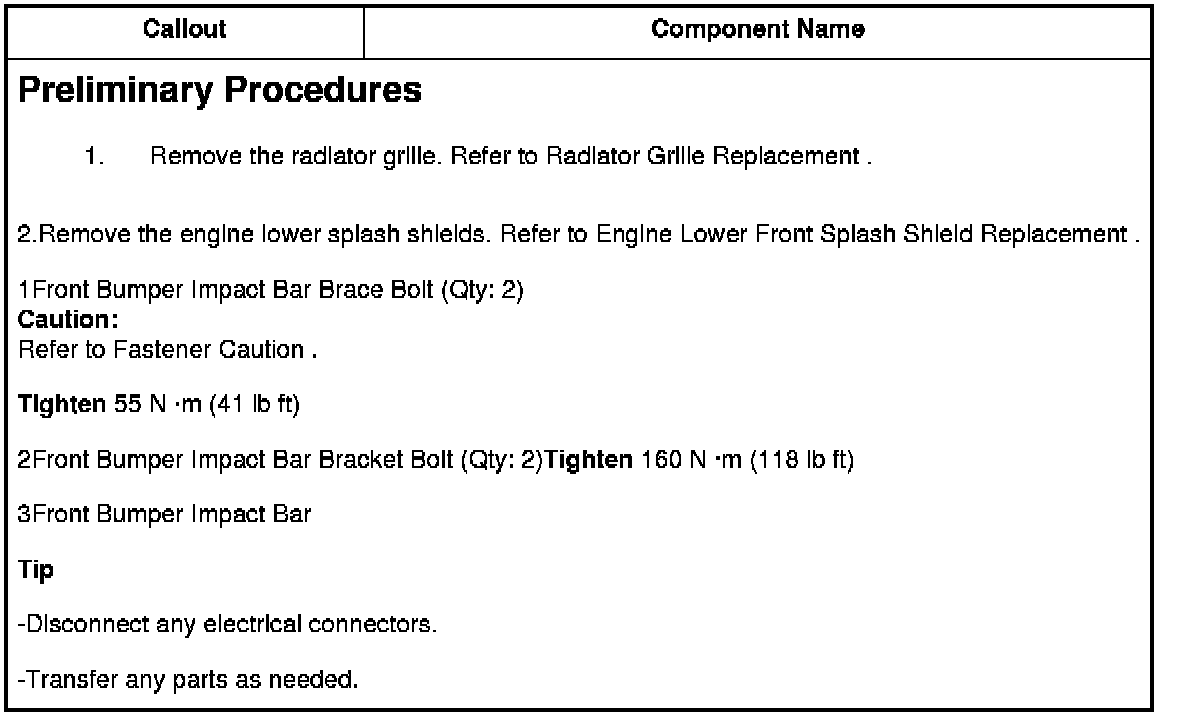

2.Remove the engine lower splash shields. Refer to Engine Lower Front Splash Shield Replacement Engine Lower Front Splash Shield Replacement .

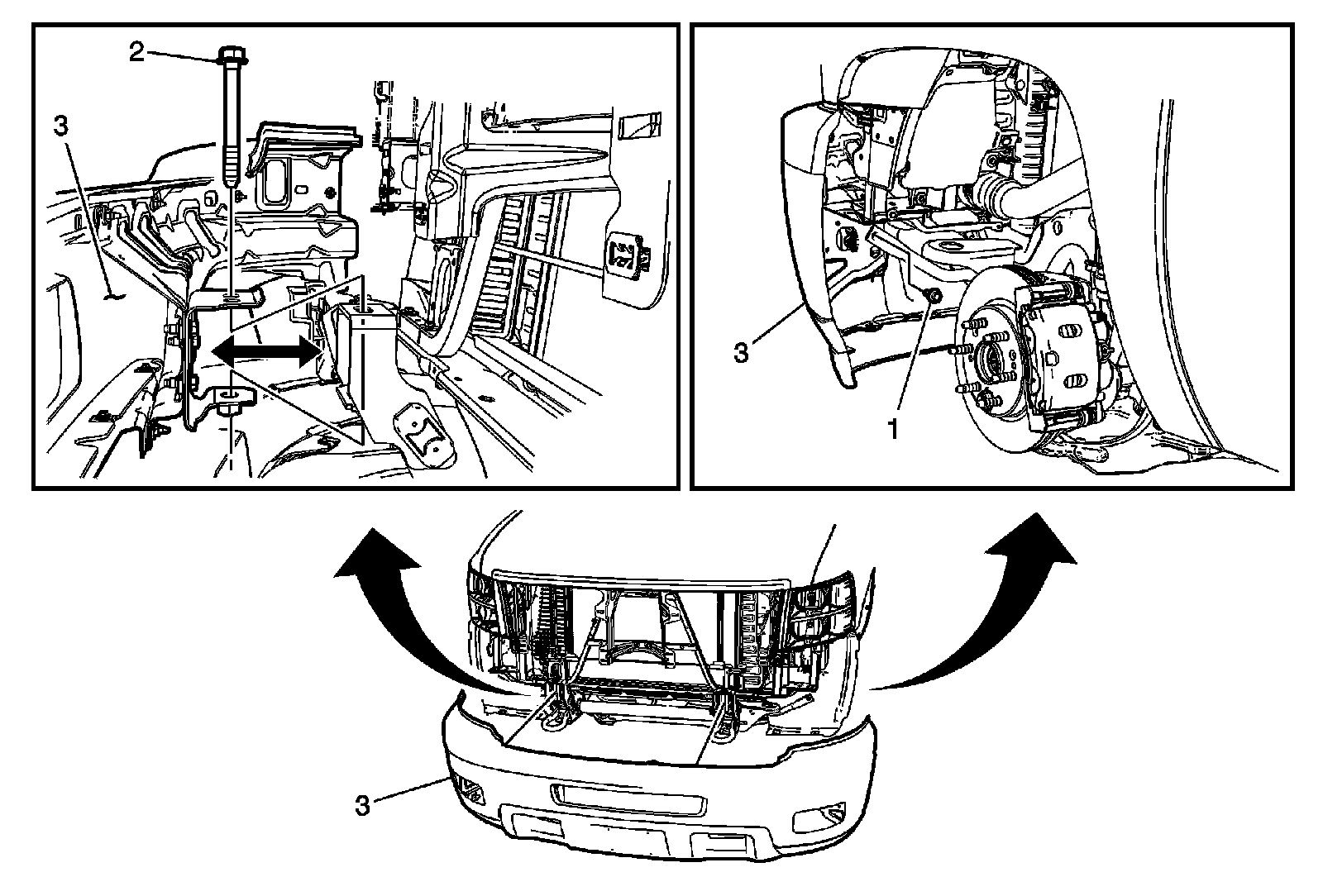

1Front Bumper Impact Bar Brace Bolt (Qty: 2)
Caution:Refer to Fastener Caution .
Tighten 55 N �m (41 lb ft)

2Front Bumper Impact Bar Bracket Bolt (Qty: 2)Tighten 160 N �m (118 lb ft)

3Front Bumper Impact Bar
Tip
-Disconnect any electrical connectors.

-Transfer any parts as needed.
