Antilock Brake System - Non-Hybrid Less than 3900 kg (8600 lb) GVW
DTC C0110
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptor
DTC C0110 00
-
Pump Motor Circuit

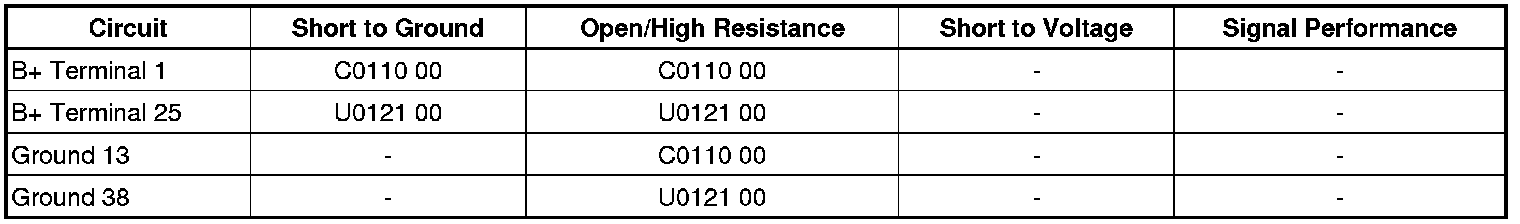

Diagnostic Fault Information
Circuit/System Description
The pump motor is an integral part of the brake pressure modulator valve, while the pump motor relay is integral to the electronic brake control module (EBCM). The pump motor relay is not engaged during normal system operation. When the antilock brake system (ABS) or traction control system operation is required the EBCM activates the pump motor relay and turns the pump motor ON.
Conditions for Running the DTC
* Ignition is ON.
* Initialization is complete.
Conditions for Setting the DTC
* The EBCM detects the pump motor runs continuously.
* The EBCM detects the pump motor is binding or stalled.
* The EBCM detects an open/high resistance on the ground circuit.
* The EBCM detects a short to ground or an open/high resistance on the B+ circuit.
Action Taken When the DTC Sets
* The ABS indicator illuminates.
* The red Brake indicator illuminates.
* The Stability Control indicator illuminates.
* The driver information center may display, Service Stabilitrak and Service Traction Control messages.
* The EBCM disables the ABS, traction control system and vehicle stability enhancement system for the duration of the ignition cycle.
Conditions for Clearing the DTC
* The condition for the DTC is no longer present.
* The EBCM clears the history DTC when a current DTC is not detected in 40 consecutive drive cycles.
Note:
During normal diagnostic and/or repair verification technicians may find that the ABS, Traction Control and/or Stabilitrak indicators may be ON with NO DTCs displayed by the EBCM. Do not replace the EBCM for this condition.
If the ABS, Traction Control and/or Stabilitrak telltales are ON with no DTCs set, perform the following steps:
1. Remove the key from the ignition, open and close the driver's door to turn off retained accessory power (RAP), and wait 60 seconds.
2. Ignition ON, if the ABS, Traction Control and/or Stabilitrak telltales are still illuminated, operate the vehicle at speeds greater than 15 km/h (10 mph) to complete the self test. The EBCM should request all telltale indicators to turn OFF.
3. If the telltales remain ON with no DTCs set after the drive cycle, disconnect the battery for at least 60 seconds then reconnect the battery.
4. Operate the vehicle at speeds greater than 40 km/h (25 mph), the EBCM should request all telltale indicators to turn OFF.
Reference Information
Schematic Reference
Antilock Brake System Schematics [1][2]Antilock Brakes / Traction Control Systems
Connector End View Reference
Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)
Description and Operation
ABS Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit Verification
Ignition ON, perform the Pump Motor Test with a scan tool and listen/feel the Pump Motor turn ON and OFF.
Circuit/System Testing
1. Ignition OFF, disconnect the harness connector at the EBCM. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between each ground circuit terminal listed below and ground:
* Terminal 13
* Terminal 38
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
3. Ignition ON.
4. Ignition ON, verify a test lamp illuminates between each B+ circuit terminal listed below and ground:
* Terminal 1
* Terminal 25
• If the test lamp does not illuminate and the circuit fuse is good
1. Ignition OFF.
2. Test for less than 2 ohms in the B+ circuit end to end.
• If 2 ohms or greater, repair the open/high resistance the in the circuit.
• If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
• If the test lamp does not illuminate and the circuit fuse is open
1. Ignition OFF.
2. Test for infinite resistance between the B+ circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the brake pressure modulator valve.
• If the test lamp illuminates
5. Replace the brake pressure modulator valve.
6. Verify the DTC does not set while operating the vehicle under the Conditions for Running the DTC.
• If the DTC sets
Replace the electronic brake control module.
• If the DTC does not set
7. All OK.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Brake Pressure Modulator Valve Replacement Brake Pressure Modulator Valve Replacement
* Control Module References Control Module References for EBCM replacement, programming and setup
