B2600

DTC B2600

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B2600 00

-
Daytime Running Lamp Control Circuit

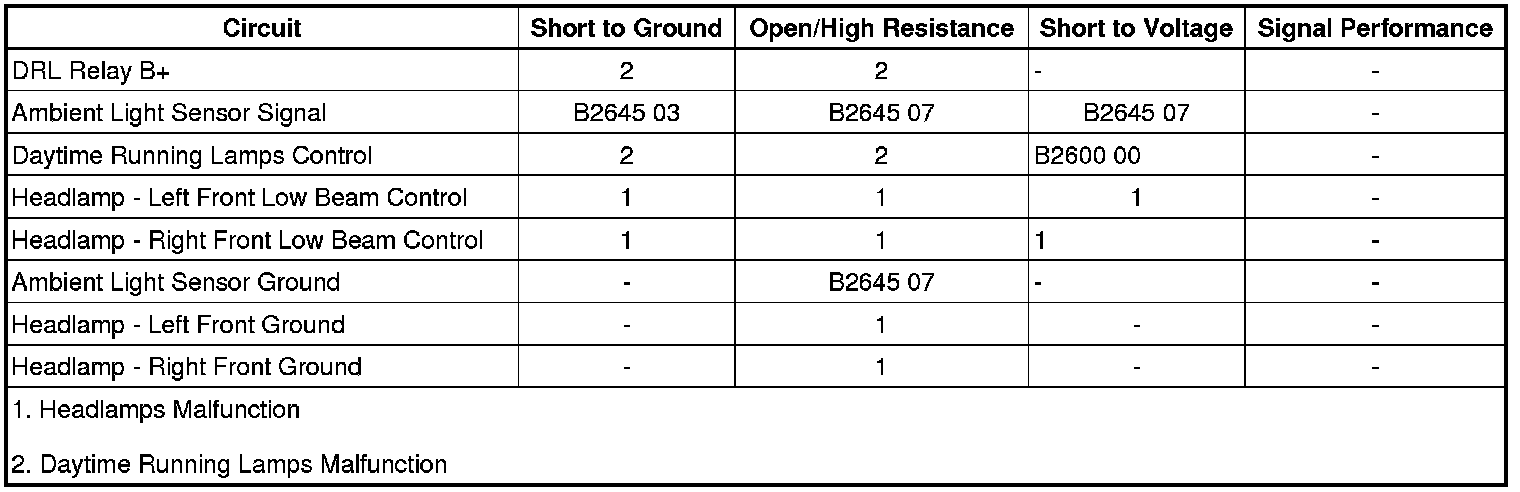

Diagnostic Fault Information






Circuit/System Description

The ambient light sensor is used to monitor outside lighting conditions. The ambient light sensor provides a voltage signal that will vary between 0.2 and 4.9 V depending on outside lighting conditions. The body control module (BCM) provides a 5 V reference signal to the ambient light sensor. The body control module (BCM) monitors the ambient light sensor signal circuit to determine if outside lighting conditions are correct for either daytime running lights (DRL) or automatic lamp control (ALC) when the headlamp switch is in the AUTO position. In daylight conditions, the BCM will command the DRLs ON by applying ground to the DRL relay via the DRL relay control circuit. When the BCM applies ground to the DRL relay control circuit, the DRL relay coil energizes causing the relay switch contacts to close. With the DRL relay switch contacts closed, battery voltage flows through the DRL 1 and DRL 2 fuses to the left and right LO HDLP fuses to the low beam headlamps. The DRL control circuit that supplies the low beam headlamp fuses with voltage contains a loop of wire that acts as resistance. This resistance is responsible for the low beam headlamps illuminating at a reduced intensity. Any function or condition that turns on the headlamps will cancel DRL operation.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.

* Headlamp switch in AUTO position.

Conditions for Setting the DTC

The BCM detects a short to voltage in the DRL relay control circuit.

Action Taken When the DTC Sets

The BCM will disable the DRL relay control circuit.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Headlights/Daytime Running Lights (DRL) Schematics Headlights/Daytime Running Lights (DRL) Schematics

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

Ignition ON, verify with a scan tool the Park Brake Switch parameter displays Released.

If not the specified value, refer to Brake Warning Indicator Malfunction Brake Warning Indicator Malfunction.

Circuit/System Testing

1. Ignition OFF, disconnect the X4 harness connector at the fuse block - underhood.

2. Connect a test lamp between the control circuit terminal H4 and B+.

3. Command the DRL ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to ground. If the circuit tests normal, replace the BCM.

• If the test lamp is always OFF, test the control circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.

4. Ignition OFF, connect the X4 harness connector at the fuse block - underhood. Disconnect the harness connector at the headlamp - low beam.

5. Test for less than 5 ohms between the ground circuit terminal B and ground.

• If greater than the specified range, test the ground circuit for an open/high resistance.

6. Connect a test lamp between the control circuit terminal A and ground.

7. Command the DRL ON and OFF with a scan tool. The test lamp should turn ON and OFF when changing between the commanded states.

• If the test lamp is always ON, test the control circuit for a short to voltage. If the circuit tests normal, replace the fuse block - underhood.

• If the test lamp is always OFF and the circuit fuse is good, test the control circuit for an open/high resistance. If the circuit tests normal, test or replace the fuse block - underhood.

• If the test lamp is always OFF and the circuit fuse is open, test the control circuit for a short to ground. If the circuit tests normal, test or replace the headlamp - low beam.

8. If all circuits test normal, test or replace the headlamp - low beam.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Underhood Electrical Center or Junction Block Replacement Underhood Electrical Center or Junction Block Replacement

* Headlamp Replacement (Chevrolet) Headlamp Replacement (HD Chevrolet Diesel) Headlamp Replacement (GMC)

* Control Module References Control Module References for BCM replacement, setup, and programming
