B0958




DTC B0958, B0959, B0960, or B0961

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using the diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B0958 01

-
Parking Aid Rear Sensor 1 Circuit Short to Battery - Left Rear Corner

DTC B0958 06

-
Parking Aid Rear Sensor 1 Circuit Short to Ground or Open - Left Rear Corner

DTC B0958 08

-
Parking Aid Rear Sensor 1 Circuit Signal Invalid - Left Rear Corner

DTC B0958 3A

-
Parking Aid Rear Sensor 1 Circuit Incorrect Component Installed - Left Rear Corner

DTC B0959 01

-
Parking Aid Rear Sensor 2 Circuit Short to Battery - Left Rear Middle

DTC B0959 06

-
Parking Aid Rear Sensor 2 Circuit Short to Ground or Open - Left Rear Middle

DTC B0959 08

-
Parking Aid Rear Sensor 2 Circuit Signal Invalid - Left Rear Middle

DTC B0959 3A

-
Parking Aid Rear Sensor 2 Circuit Incorrect Component Installed - Left Rear Middle

DTC B0960 01

-
Parking Aid Rear Sensor 3 Circuit Short to Battery - Right Rear Middle

DTC B0960 06

-
Parking Aid Rear Sensor 3 Circuit Short to Ground or Open - Right Rear Middle

DTC B0960 08

-
Parking Aid Rear Sensor 3 Circuit Signal Invalid - Right Rear Middle

DTC B0960 3A

-
Parking Aid Rear Sensor 3 Circuit Incorrect Component Installed - Right Rear Middle

DTC B0961 01

-
Parking Aid Rear Sensor 4 Circuit Short to Battery - Right Rear Corner

DTC B0961 06

-
Parking Aid Rear Sensor 4 Circuit Short to Ground or Open - Right Rear Corner

DTC B0961 08

-
Parking Aid Rear Sensor 4 Circuit Signal Invalid - Right Rear Corner

DTC B0961 3A

-
Parking Aid Rear Sensor 4 Circuit Incorrect Component Installed - Right Rear Corner

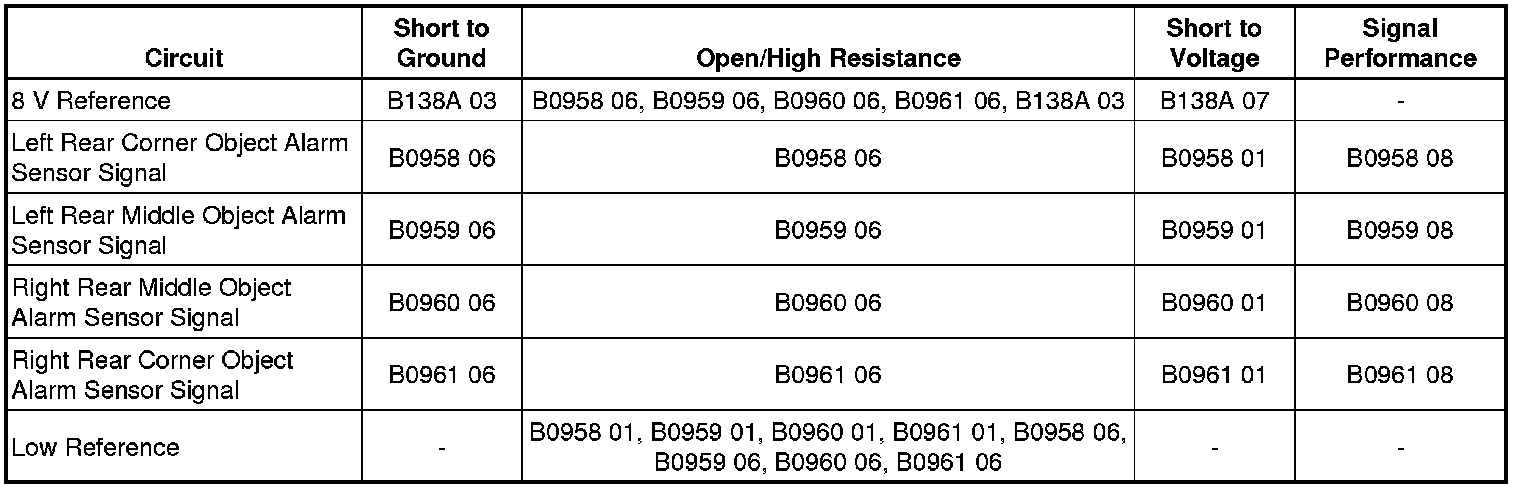

Diagnostic Fault Information






Circuit/System Description

The object alarm sensors are 3-wire sensors that are used to determine the distance between the vehicle and an object of interest. The rear object sensor control module supplies 8 V to the object alarm sensors via the 8 V reference circuit and provides ground via the low reference circuit. The rear object sensor control module triggers the sensors in a sequential loop. After each sensor transmits, the rear object sensor control module uses the sensor echo received through the signal circuit to calculate the distance and position of an object.

Conditions for Running the DTC

* DTC B1325 is not set

* Ignition voltage is between 9-16 V

* Transmission in REVERSE

Conditions for Setting the DTC

B0958 01, B0959 01, B0960 01, or B0961 01

Voltage seen on the object alarm sensor signal circuit is greater than 11.5 V or the object alarm sensor is not grounded.

B0958 06, B0959 06, B0960 06, or B0961 06

Voltage seen on the object alarm sensor signal circuit is less than 0.5 V.

B0958 08, B0959 08, B0960 08, or B0961 08

An invalid signal is received by the rear object sensor control module.

B0958 3A, B0959 3A, B0960 3A, B0961 3A

The rear object sensor control module determines there is an incorrect sensor installed.

Action Taken When the DTC Sets

* The parking assist system is disabled.

* The rear object sensor control module sends a serial data message to the instrument panel cluster (IPC) to display SERVICE PARK ASSIST message in the driver information center (DIC).

Conditions for Clearing the DTC

* The DTC will transition to history when the fault is no longer present.

* A history DTC will clear after 100 malfunction-free ignition cycles.

Diagnostic Aids

Make sure the object alarm sensors located on the rear vehicle bumper are clear. Remove any snow, mud or ice that is blocking the sensors.

Reference Information

Schematic Reference

Object Detection Schematics [1][2]Collision Avoidance and Parking Assist Systems

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Description and Operation

Object Detection Description and Operation (UVC) Object Detection (UVC)Object Detection Description and Operation (UD7) Object Detection (UD7)

Electrical Information Reference

* Circuit Testing Circuit Testing

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

* Connector Repairs Connector Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

1. Verify that DTC B1405 is not set.

• If DTC is set, refer to DTC B1405 B1405.

2. Verify that DTC B0958 3A, B0959 3A, B0960 3A, or B0961 3A is not set.

• If DTC is set, replace the appropriate object alarm sensor.

Circuit/System Testing

Single Object Alarm Sensor DTC Set

1. Ignition OFF, disconnect the harness connector at the appropriate object alarm sensor.

2. Ignition OFF for 30 seconds, test for less than 20 omhs between the low reference circuit terminal 2 and ground.

• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the rear object sensor control module.

3. Ignition ON, transmission in REVERSE, test for 8.0-9.0 V between the voltage reference circuit terminal 1 and ground.

• If greater than the specified range, test the voltage reference circuit for a short to voltage. If the circuit tests normal, replace the rear object sensor control module.

• If less than the specified range, test the voltage reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the rear object sensor control module.

4. Ignition OFF, remove the malfunctioning object alarm sensor and swap locations with another properly functioning object alarm sensor.

5. Connect the harness connector at both sensors.

6. Ignition ON, verify DTC is set for the new location in which the malfunctioning object alarm sensor is installed.

• If the DTC does not set for the new location, test the signal circuit terminal 3 for a short to voltage, short to ground, or an open/high resistance. If the circuit tests normal, replace the rear object sensor control module.

7. If the DTC sets for the new location in which the malfunctioning object alarm sensor is installed, replace the appropriate object alarm sensor.

Multiple Object Alarm Sensor DTCs Set

1. Ignition OFF, disconnect the harness connector at each of the object alarm sensors.

2. Ignition OFF for 30 seconds, test for less than 20 omhs between the low reference circuit terminal 2 and ground.

• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the rear object sensor control module.

3. Ignition ON, transmission in REVERSE, test for 8.0-9.0 V between the voltage reference circuit terminal 1 and ground.

• If greater than the specified range, test the voltage reference circuit for a short to voltage. If the circuit tests normal, replace the rear object sensor control module.

• If less than the specified range, test the voltage reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the rear object sensor control module.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Rear Parking Assist Alarm Sensor Replacement Rear Parking Assist Alarm Sensor Replacement

* Control Module References Control Module References for object alarm module replacement, programming and setup
