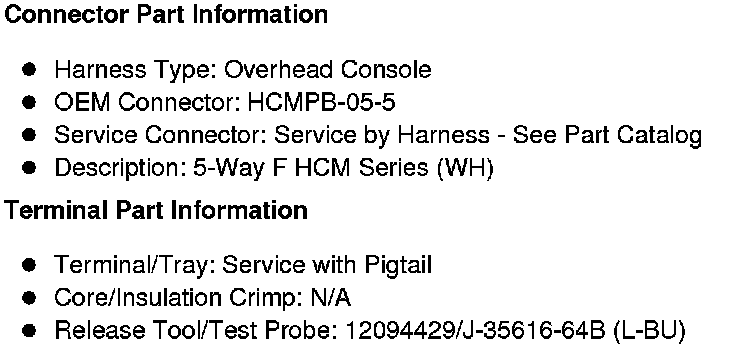

Inflatable Restraint I/P Module Indicator (AL0 or C99 except MEX)

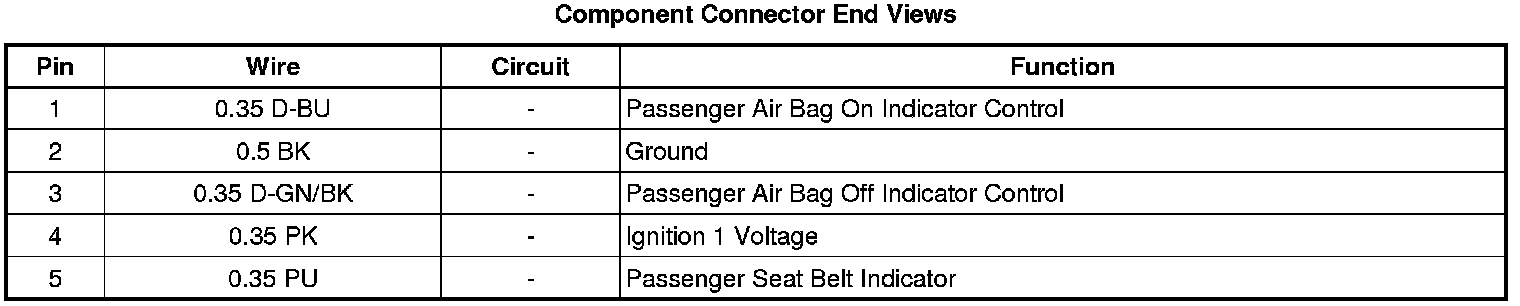

Component Connector End Views

Inflatable Restraint I/P Module Indicator (AL0 or C99 except MEX)
