FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2013
>>
Silverado 2500 2WD V8-6.0L (CNG)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Service and Repair
>>
Removal and Replacement
>>

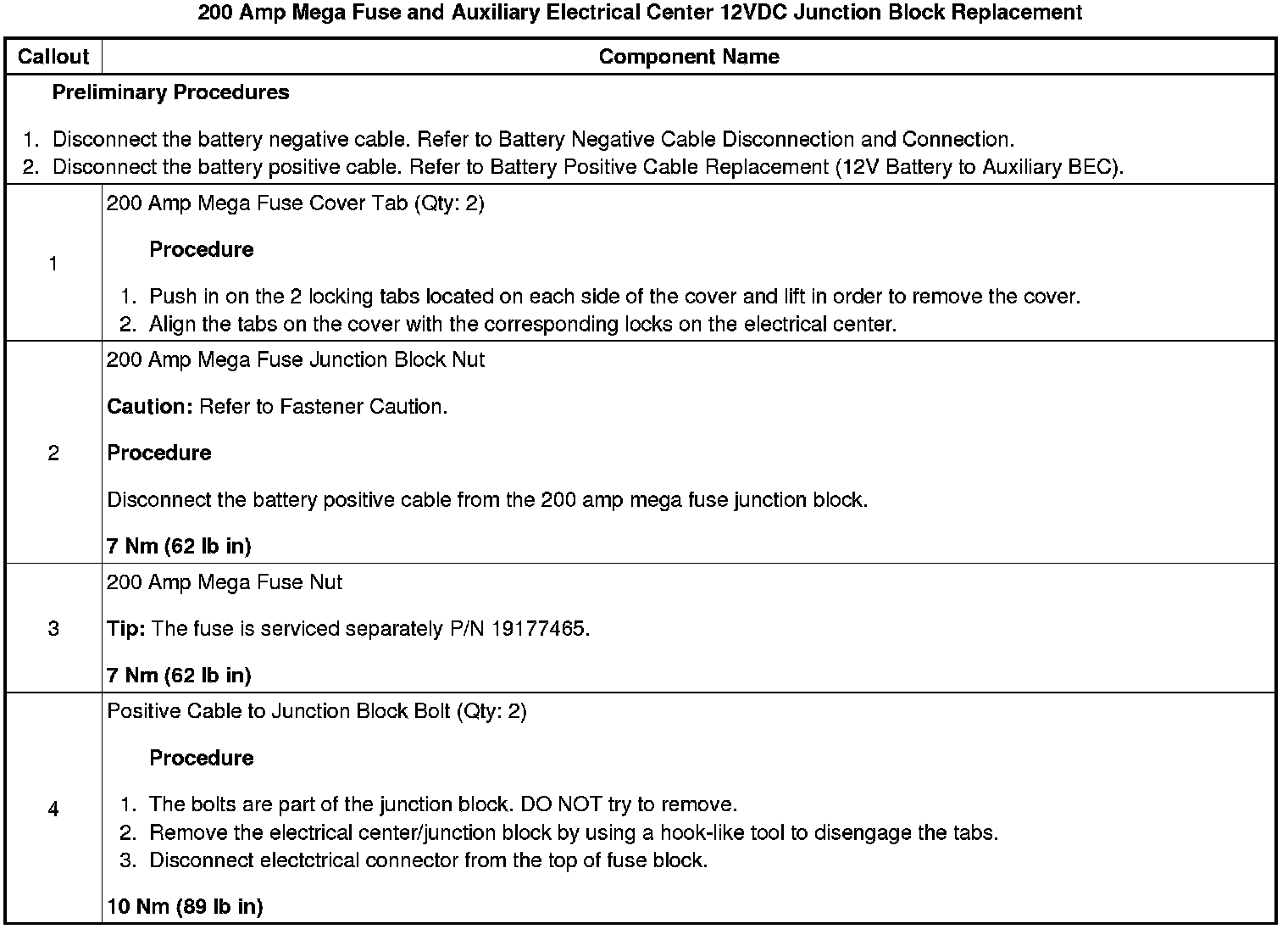

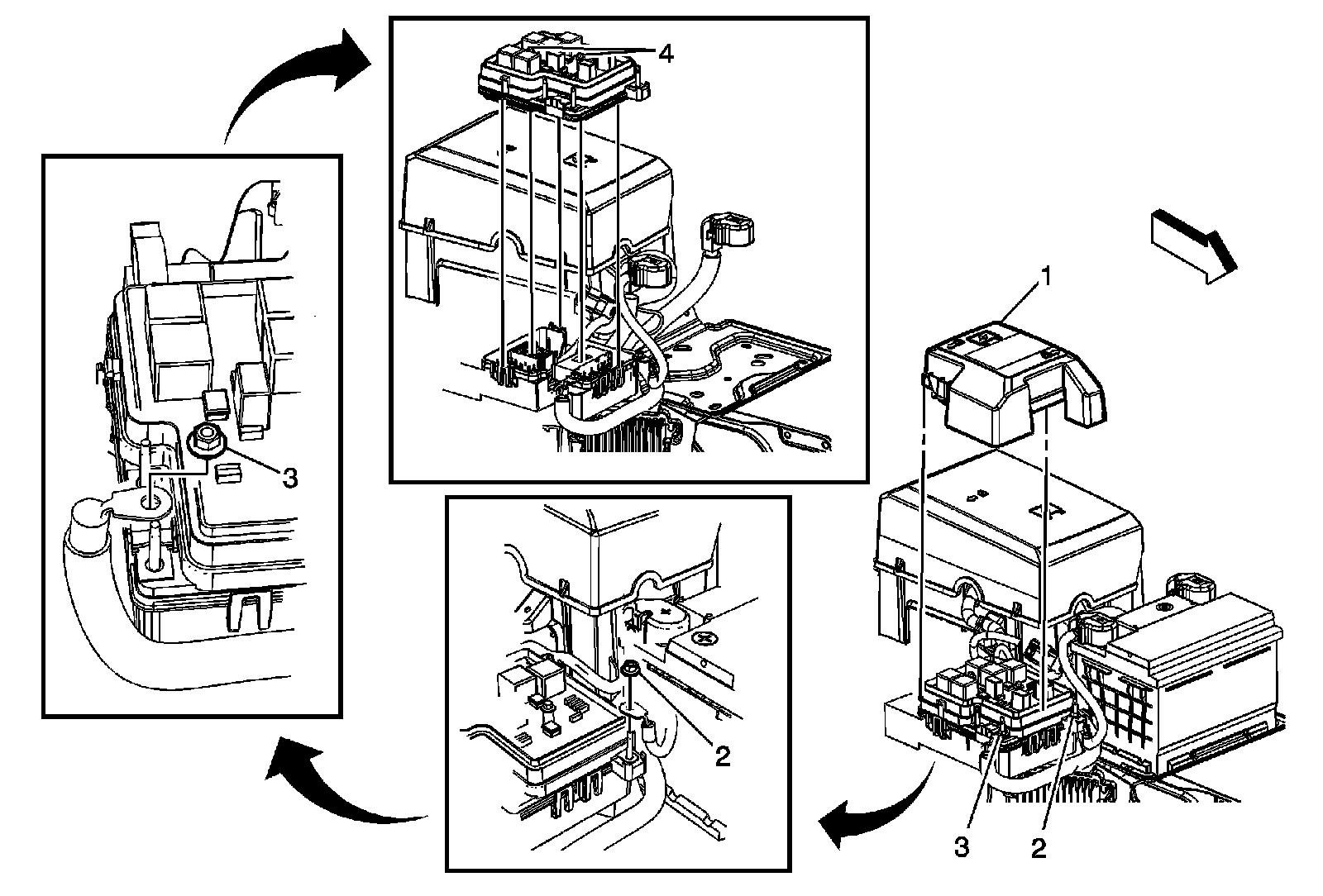

200 Amp Mega Fuse and Auxiliary Electrical Center 12VDC Junction Block Replacement
200 Amp Mega Fuse and Auxiliary Electrical Center 12VDC Junction Block Replacement
200 Amp Mega Fuse and Auxiliary Electrical Center 12VDC Junction Block Replacement
