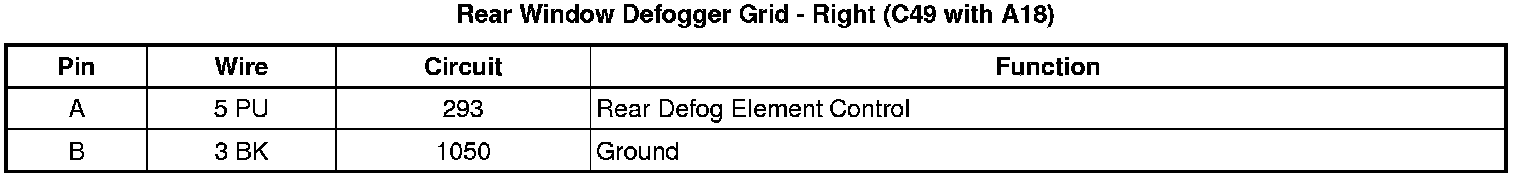

Rear Window Defogger Grid - Right (C49 with A18)
Rear Window Defogger Grid - Right (C49 with A18)

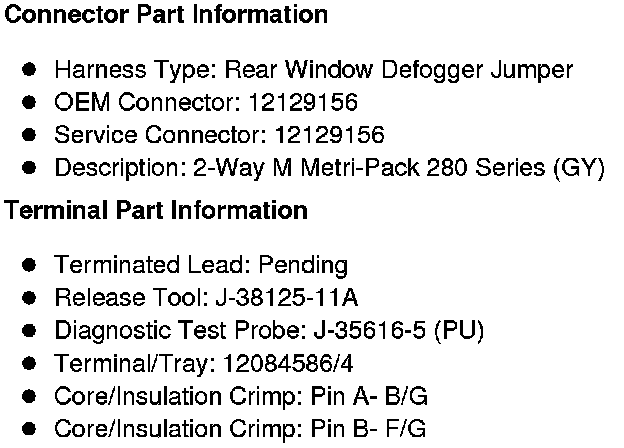

Component Connector End Views
Rear Window Defogger Grid - Right (C49 with A18)
