Exhaust Pressure Differential Sensor

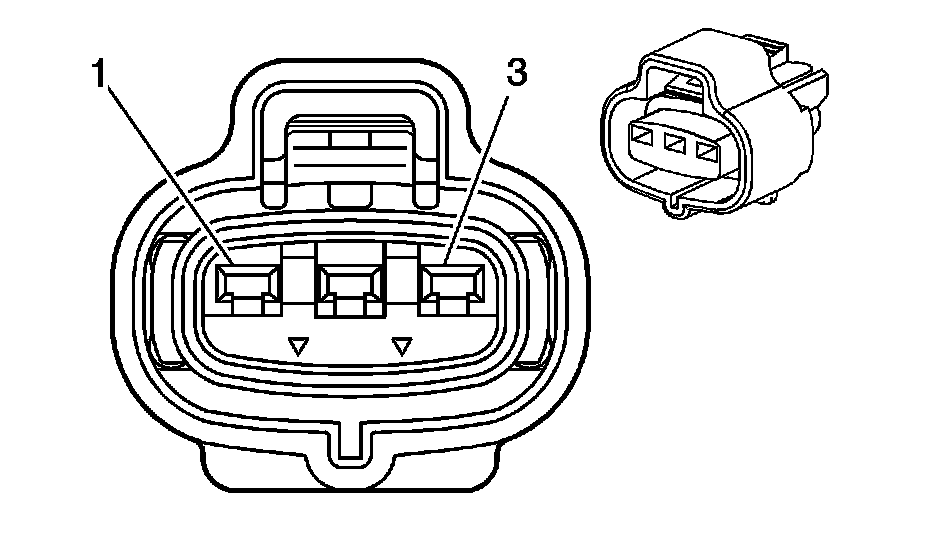

Component Connector End Views

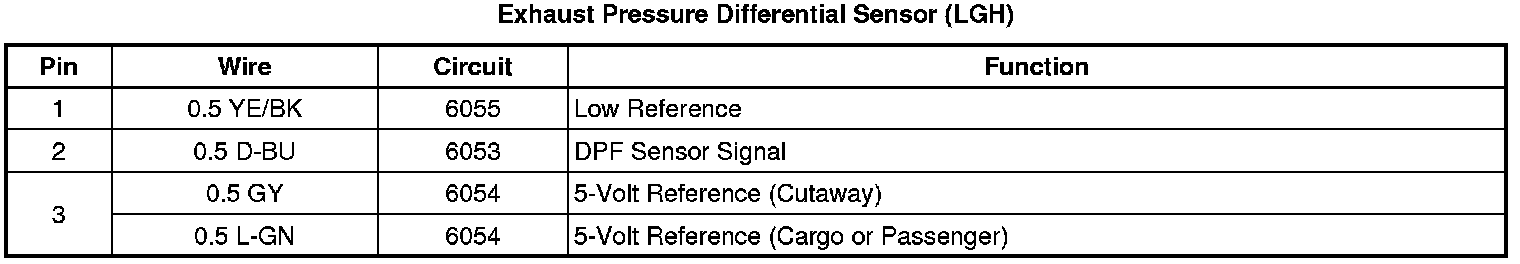

Exhaust Pressure Differential Sensor (LGH)
