Exhaust Aftertreatment Fuel Injector




Component Connector End Views

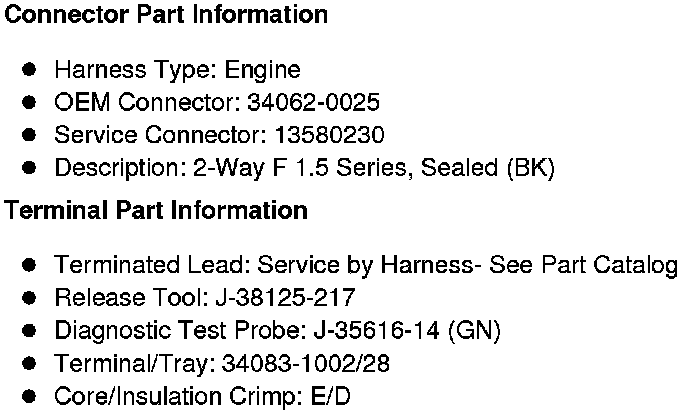

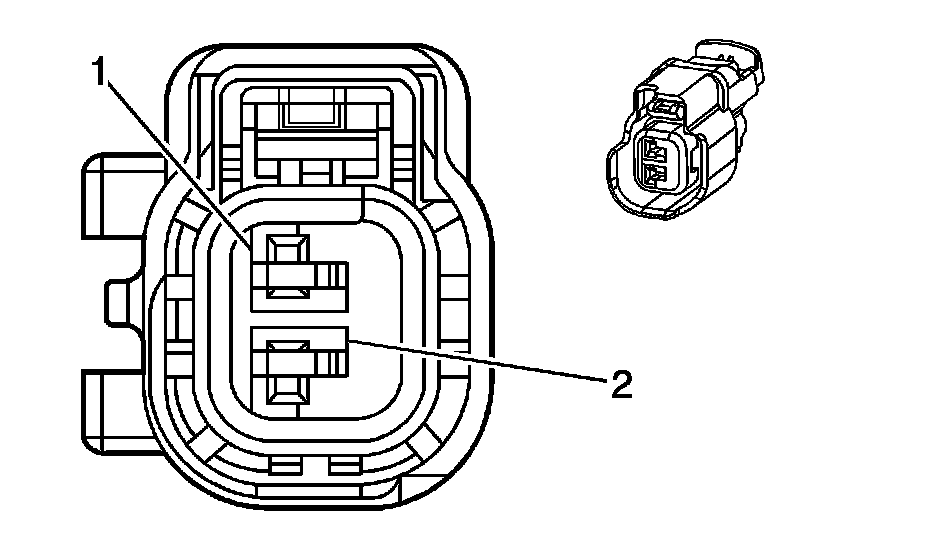

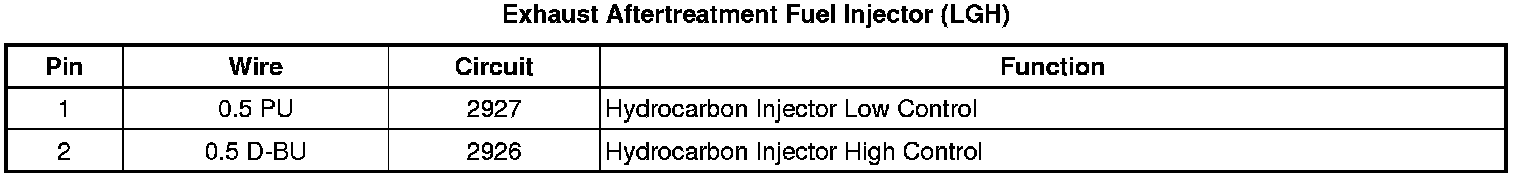

Exhaust Aftertreatment Fuel Injector (LGH)
