Top of Engine




Powertrain Component Views

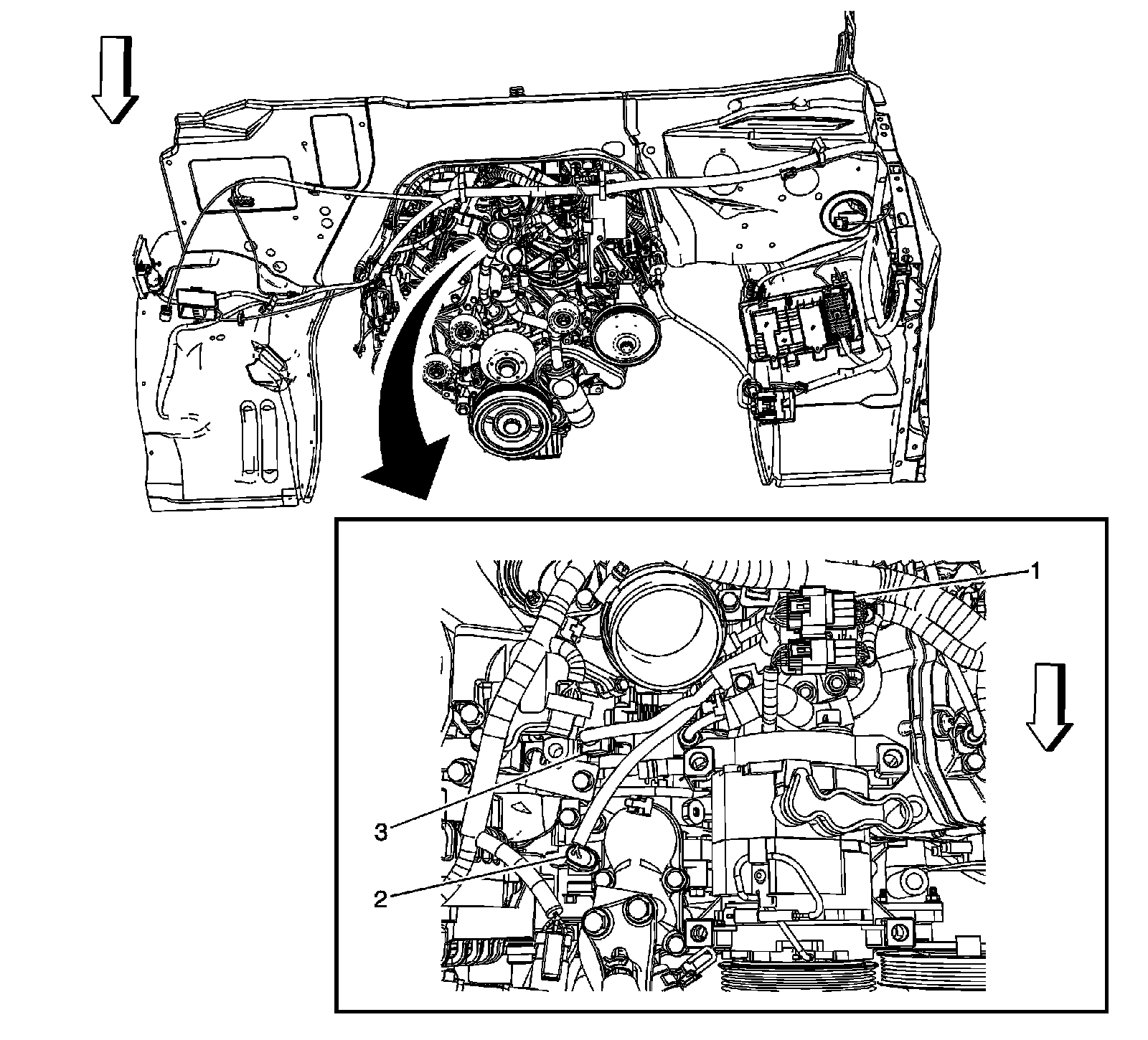

Top of Engine (LMM)





1 - X111

2 - Engine Coolant Temperature (ECT) Sensor

3 - Fuel Pressure Regulator
