FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2013
>>
Express 4500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Fuel Delivery and Air Induction
>>
Fuel Temperature Sensor
>>
Service and Repair
>>

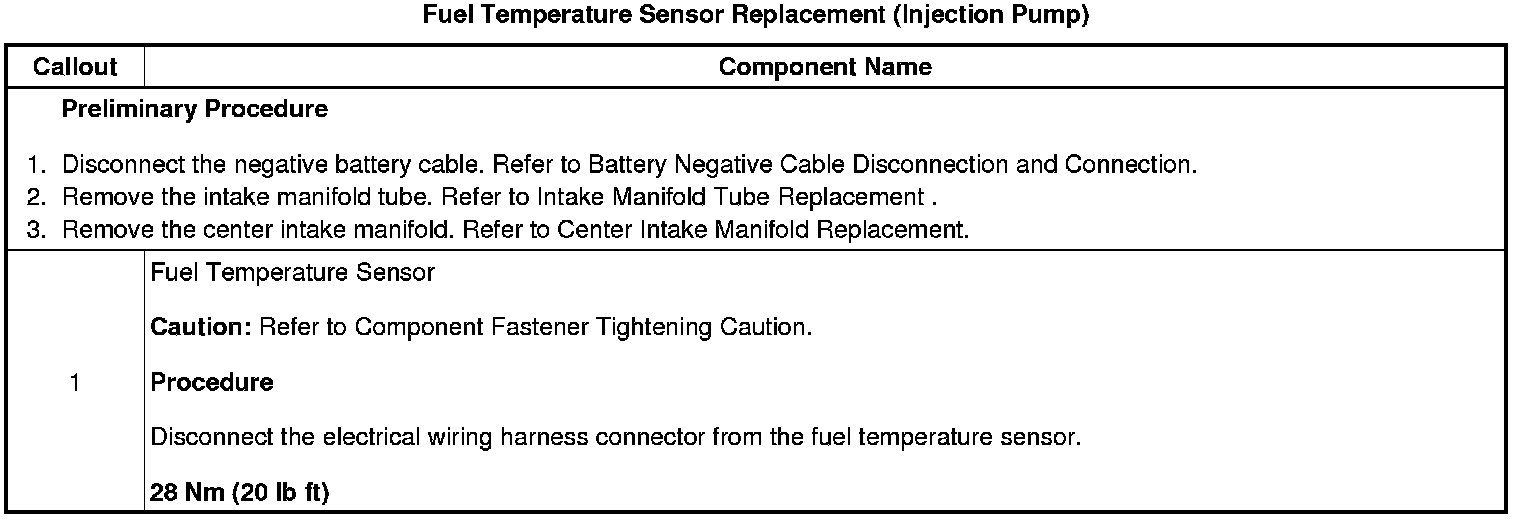

Fuel Temperature Sensor Replacement (Injection Pump)
Fuel Temperature Sensor Replacement (Injection Pump)

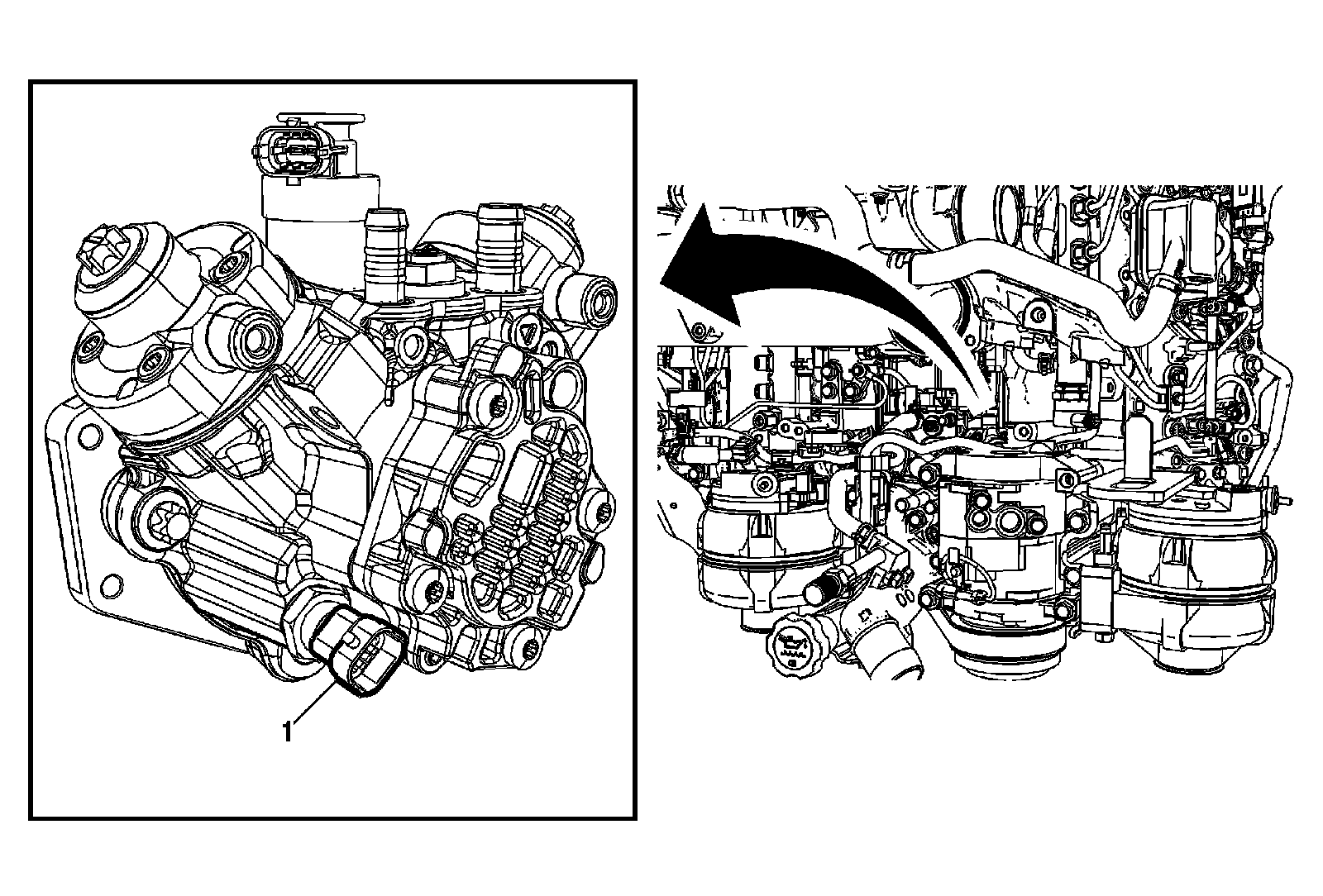

Fuel Temperature Sensor
Replacement (Injection Pump)
