EGR Temperature Sensor
>>
Diagrams
>>
Exhaust Gas Recirculation (EGR) Temperature Sensor 1
Exhaust Gas Recirculation (EGR) Temperature Sensor 1

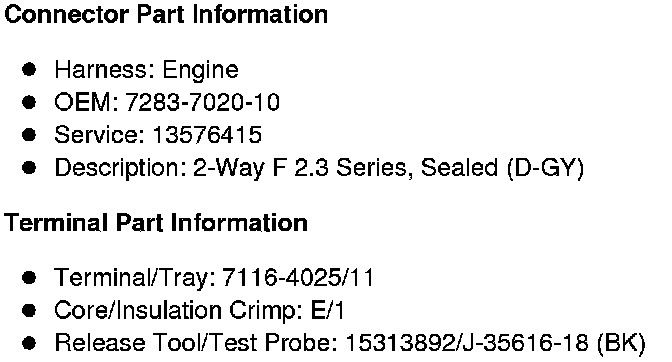

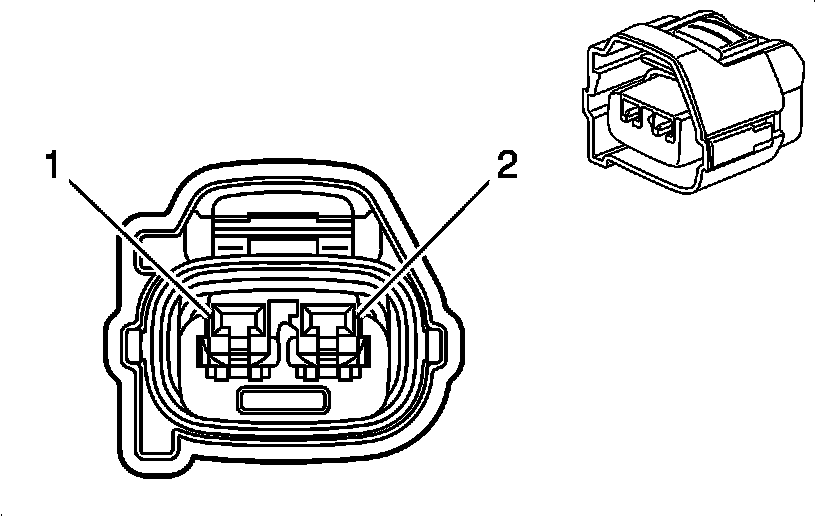

Component Connector End Views

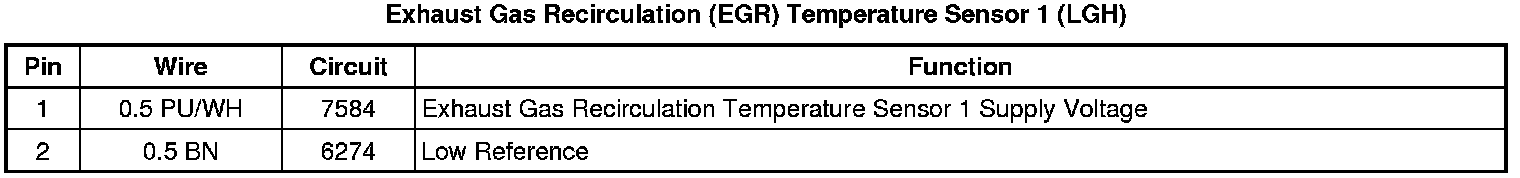

Exhaust Gas Recirculation (EGR) Temperature Sensor 1 (LGH)
