Home
>>
Chevy Truck
>>
2013
>>
Express 4500 V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Service and Repair
>>

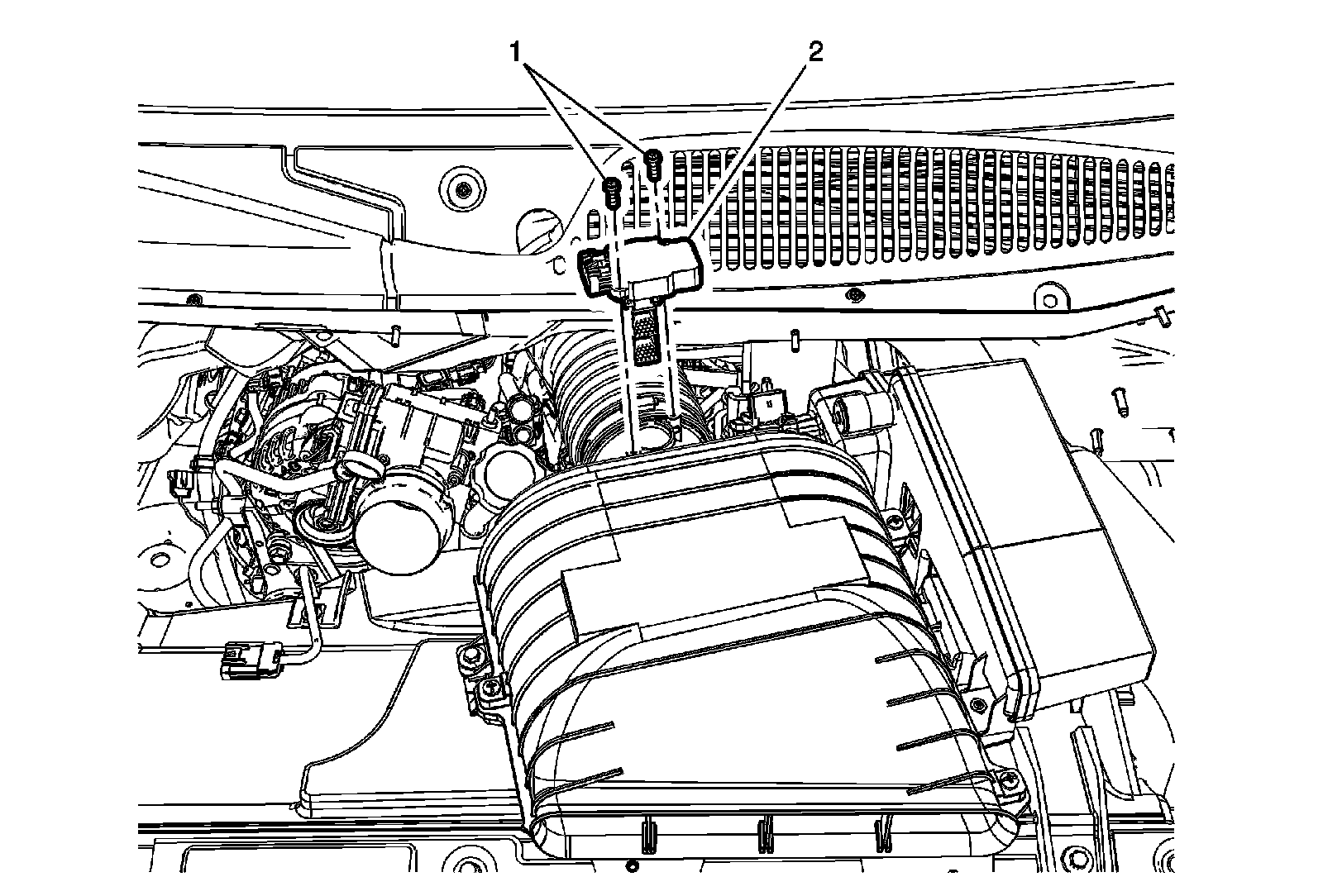

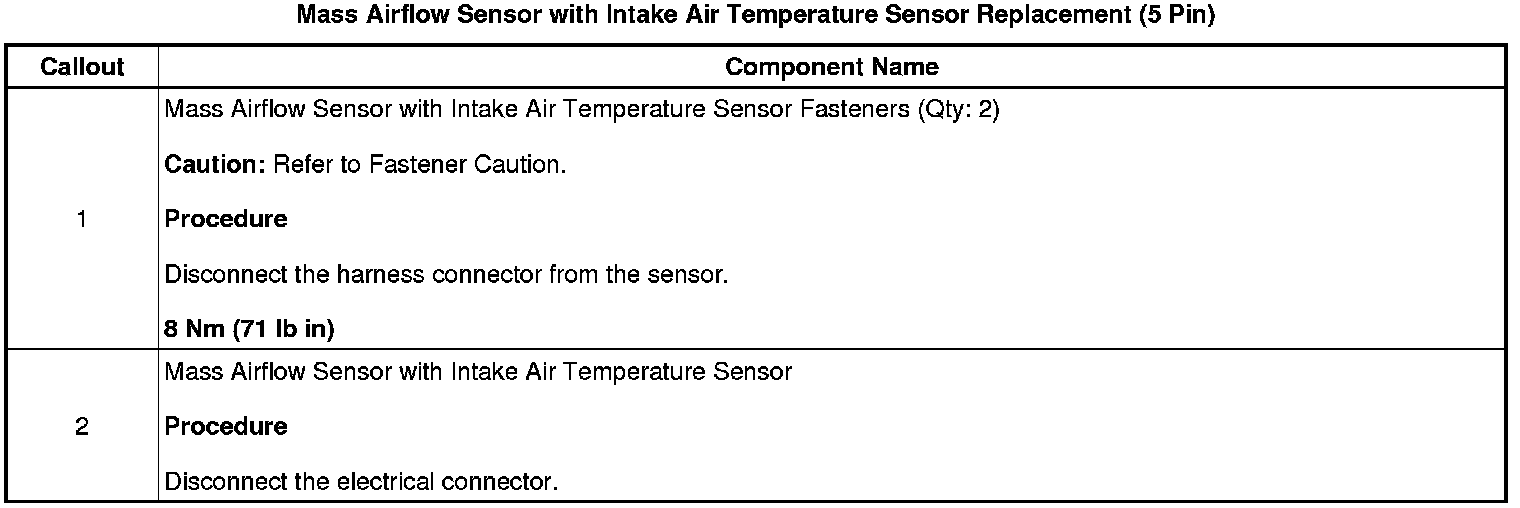

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (5 Pin)
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (5 Pin)
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (5 Pin)
