Cylinder Head Installation - Right Side

Cylinder Head Installation - Right Side

Special Tools

J 45059 - Angle Meter

For equivalent regional tools, refer to Special Tools Special Tools.





Caution:
The left and right cylinder head gaskets are not interchangeable. Improper placement of the cylinder head gasket will block coolant and oil passages. Blocked coolant and oil passages will cause severe engine damage.

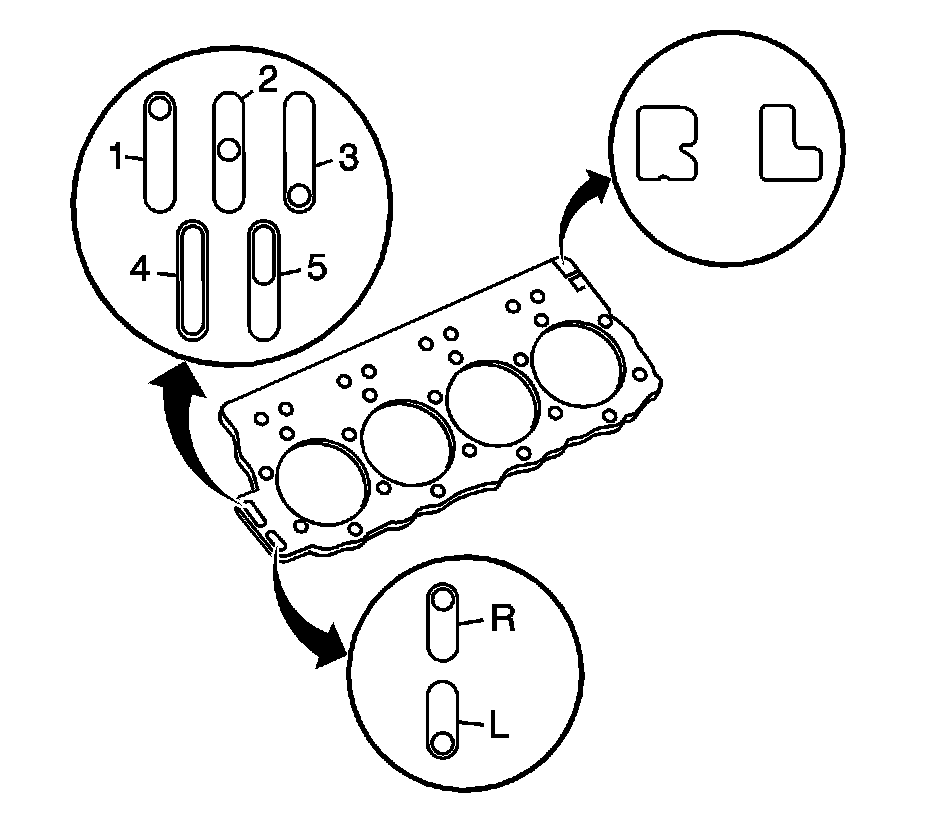

Note: The stamped letter, R or L, must face up. R is the right bank, L is the left bank.

1. The markings on the gasket are as follows:

* Grade A (1)

* Grade B (2)

* Grade C (3)

* Block over-bored 0.010-0.030 in (0.254-0.762 mm) (4)

* Block over-bored 0.010-0.030 in (0.254-0.762 mm) and deck milled 0.008 in (0.203 mm) (5)

2. Install the right cylinder head gasket of the correct grade. The left and right cylinder head gaskets are not interchangeable. Refer to Cylinder Head Gasket Selection Cylinder Head Gasket Selection.

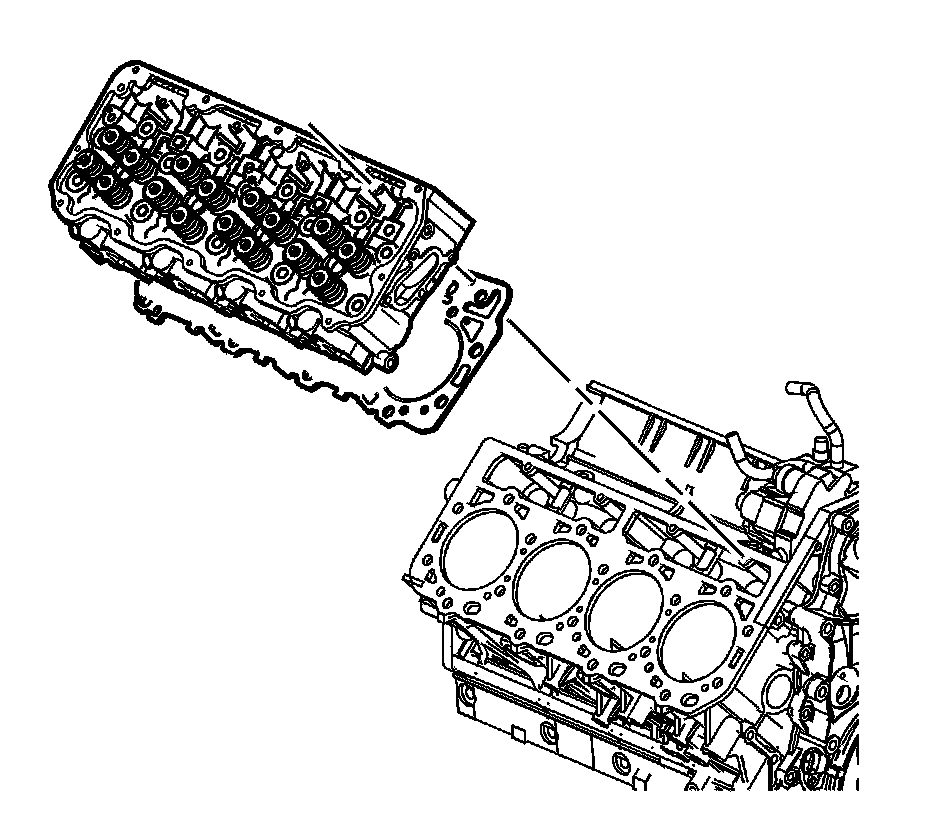

3. Install the right cylinder head.





Caution: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Caution: Refer to Fastener Caution Fastener Caution.

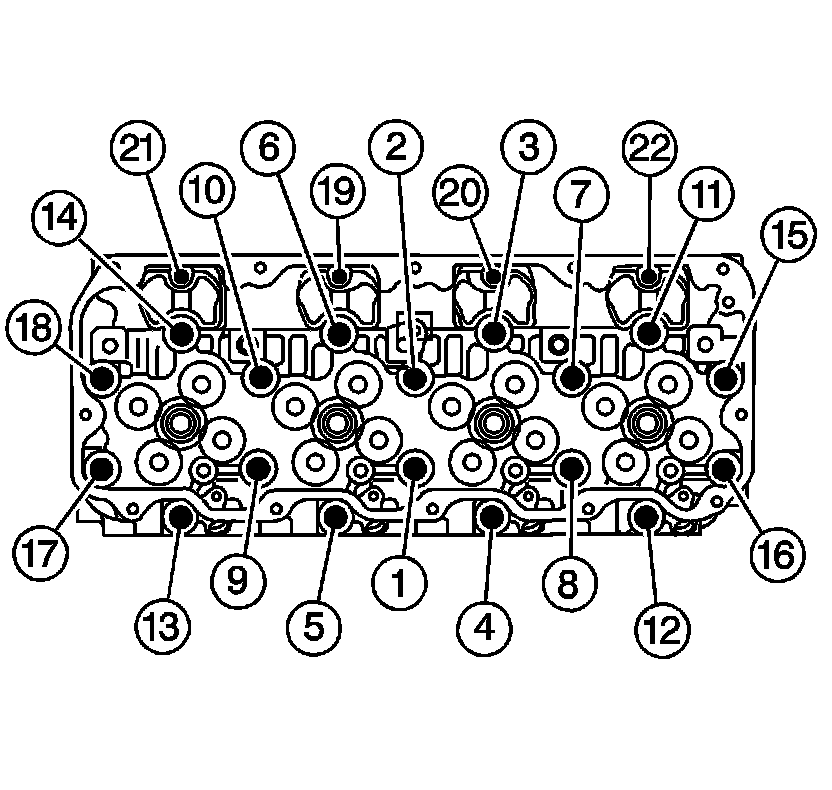

4. Install the NEW M12 cylinder head bolts. Reuse the M8 bolts.
Tighten the NEW M12 cylinder head bolts in four steps:

1. 1st step 50 Nm (37 lb ft)

2. 2nd step 80 Nm (59 lb ft)

3. 3rd step tighten 60 degrees using J 45059 - meter

4. 4th step tighten 60 degrees using J 45059 - meter

5. Install the M8 bolts. Tighten the M8 cylinder head bolts to 25 Nm (18 lb ft).
