Home >> Chevy Truck >> 2013 >> Express 4500 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G110

G110




Ground Distribution Schematics

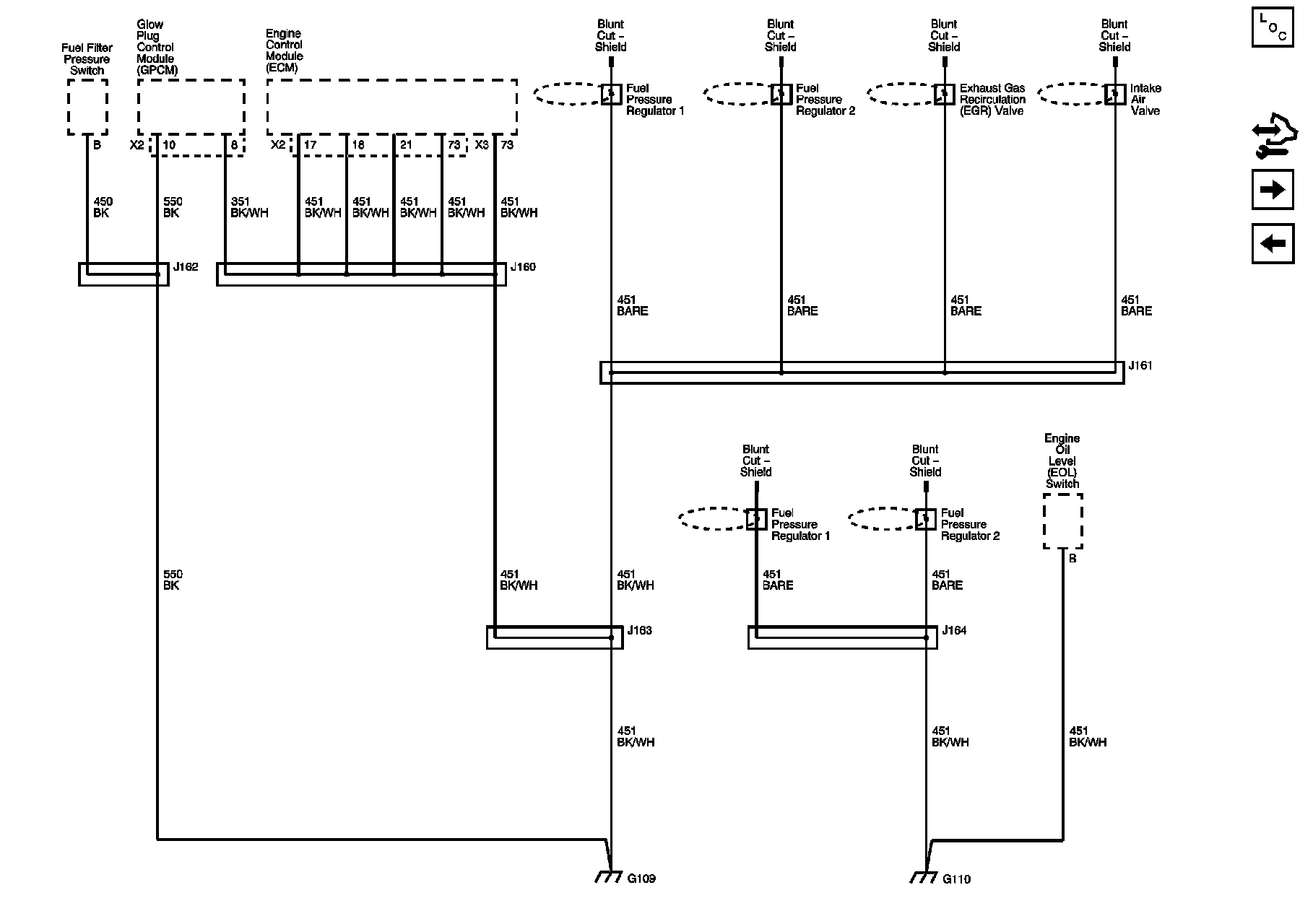

G109 (LGH) and G110 (LGH)





G300, G301, G304, and G305
G103, G104, G105 and G106
